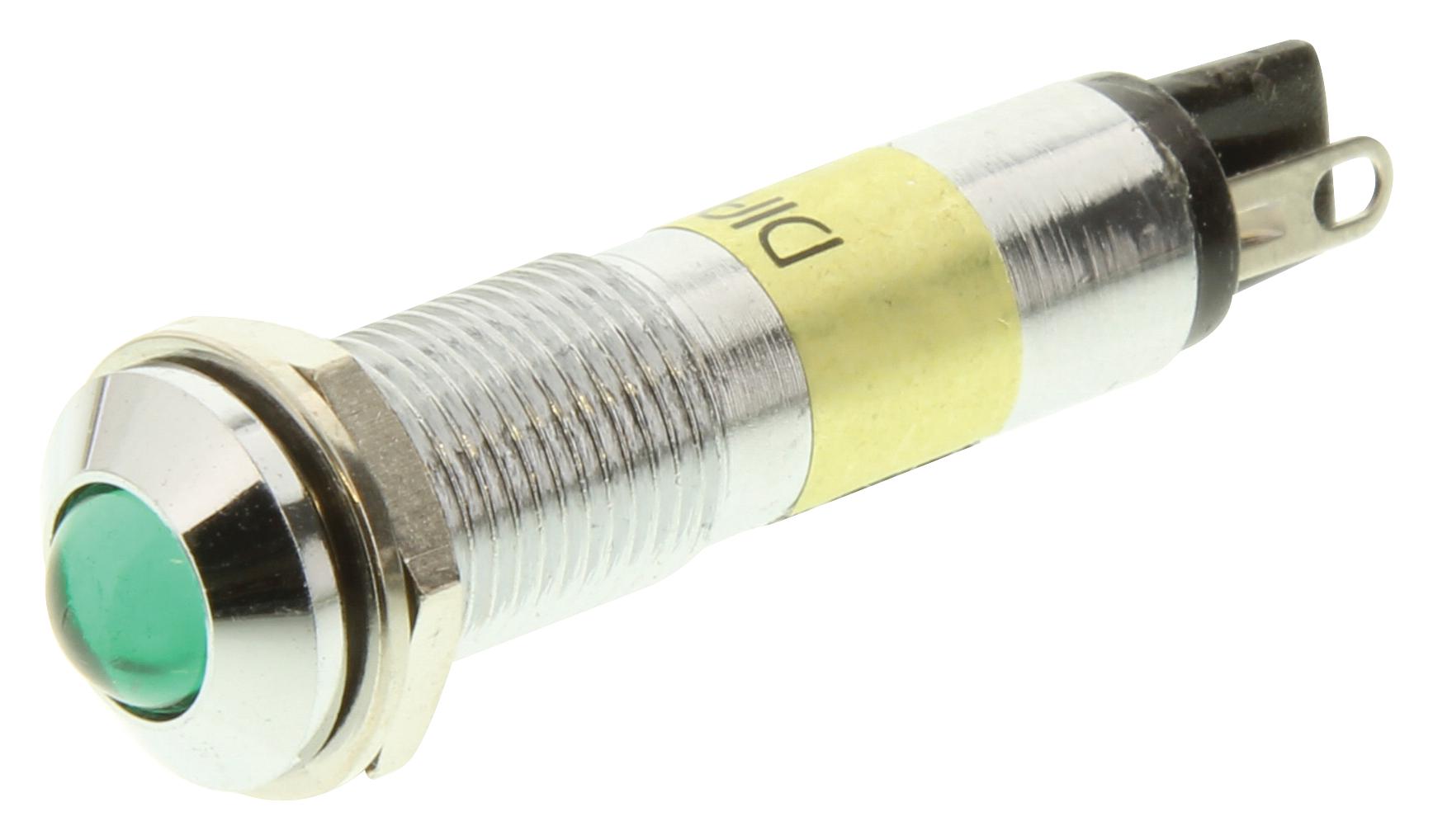

DIALIGHT 6091212120F LED Panel Indicator
The 609 Series LED Panel Mount Indicators are designed for easy installation through 9.35mm mounting holes, offering options with watertight seals meeting NEMA 4X/IP66 standards. Suitable for various applications such as power indication, status alerts, and instrumentation, these indicators operate at 6, 12, and 24 VDC without needing resistors. Made from durable chrome plated brass or black painted brass, they feature solder terminals, locking mounting with washers and nuts, and operate effectively between -30°C to +85°C. The indicators come in different LED colors and protrude or recessed types to suit different visual signaling needs.
DIALIGHT 6091212120F LED Panel Indicator Specifications:
- Voltage requirements: 6, 12, and 24 VDC (no resistor required)
- Mounting hole size: 0.368 inches [9.35 mm]
- Maximum panel thickness: 0.376 inches [9.50 mm]
- Housing Material: Chrome plated brass or black painted brass
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Watertight Seal: Meets NEMA 4X/IP66 standards
- Electrical connection: Solder terminals
- Dimensions in inches: Typical front diameter 0.375 inches [9.52 mm], mounting hole 0.368 inches [9.35 mm]
- LED Colors available: Green, Yellow, Red
- LED Intensity: Typical 15 mA current; Low and Med options
- Mounting hardware: Lock washer and nut, torque recommended 0.362 lbs/ft (5 Kg/cm)
Buy the Dialight Series 609 LED Indicators: MDEL609X001
Order Dialight 609 Series LED panel indicators online today to ensure reliable, weatherproof status and power indication in your equipment. Designed for easy installation with a 9.35mm mounting hole, these indicators support 6, 12, and 24 VDC power supplies with no resistors needed. Made from durable materials like chrome plated brass or black painted brass, they feature solder terminals and meet NEMA 4X/IP66 standards for waterproof performance. Available in various LED colors, they are ideal for instrumentation, warning, and remote power indication in demanding environments. Purchase now and enhance your signaling system with high-quality, long-lasting indicators.
Buy Dialight 609 LED panel indicators now and experience unmatched reliability and performance in industrial signaling applications with robust watertight sealing.
Frequently Asked Questions
Where can I buy DIALIGHT 6091212120F?
You can click on the BUY or RFQ button to purchase 6091212120F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6091212120F?
You can download the 6091212120F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6091212120F?
DIALIGHT
