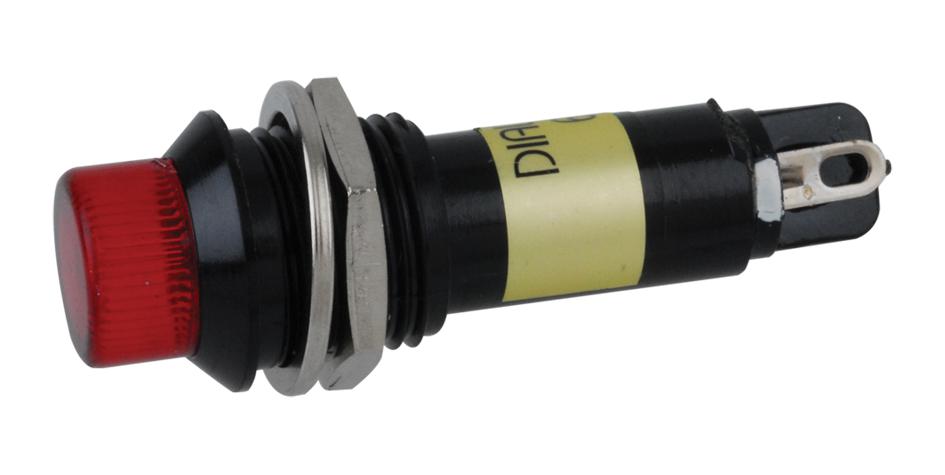

DIALIGHT 6123132120F Panel Mount LED Indicator
The DIALIGHT 612 Series Panel Mount Indicators are designed for a wide range of applications, including main power indication, remote power indication, status indication, and maintenance warnings. These indicators boast low power consumption, utilizing up to 90% less energy than incandescent alternatives, and feature a long operational life of up to 100,000 hours. Constructed with a durable polycarbonate housing, they offer reliable performance in demanding industrial environments. Available in red, green, and yellow, these indicators provide clear and concise visual cues for various operational statuses.
DIALIGHT 6123132120F Panel Mount LED Indicator Specifications:
- Application: Main power indication, remote power indication, status indication, maintenance and warning indication, instrumentation
- Color: Red
- Voltage (V DC): 6
- Current (mA): 15
- Intensity Typ. (mcd): 60
- Mounting Hole Size: Not specified
- Max Panel Thickness: Not specified
- Mounting Torque: 0.217 lbs/ft (3 kg/cm)
- Operating Voltage: 6, 12, and 24V DC
- Operating Temp: -25°C to +85°C
- Storage Temp: -25°C to +100°C
- Electrical Connection: Solder terminals
- Housing Material: Polycarbonate
- Power Consumption: Uses up to 90% less energy than incandescent indicators
- Lifespan: Up to 100K hours
- Available Colors: Red, Green, Yellow
