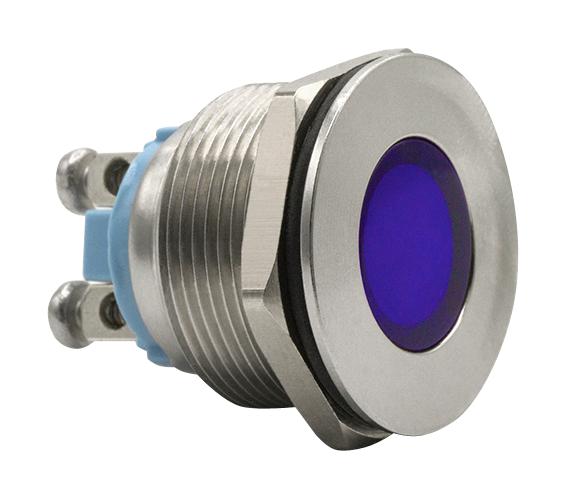

DIALIGHT 6221401304F Heavy Duty Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators are robust, corrosion-resistant, and suitable for indoor and outdoor applications. Designed with a stainless steel housing and secured against water, dust, and dirt ingress, these indicators feature a high-end aesthetic and are easy to mount with a 22mm hole. They operate at 3V to 24V DC with internal resistors, making them ideal for main power, remote indication, and instrumentation. Rated IP66/IP67, IK10, and NEMA 4X, they are suitable for harsh environments and various industrial uses, ensuring durability and reliable performance.
DIALIGHT 6221401304F Heavy Duty Indicator Specifications:
- Mounting Hole Size: 22mm (0.866 inches)
- Max Panel Thickness: 10mm (0.394 inches)
- Operating Voltage: 3 VDC to 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Housing Material: Stainless Steel
- Nut Material: Stainless Steel
- Certifications: RoHS, IP66/IP67, IK10, NEMA 4X
Buy the Buy Dialight Indicator Part Number 6221401304F Online
Discover the robust and corrosion-resistant Heavy Duty Indicator from Dialight, ideal for demanding industrial environments. Designed with stainless steel housing, it offers IP66/IP67 protection and fits any panel with a 22mm mounting hole. Suitable for indoor and outdoor applications, its operating voltage ranges from 3V to 24V DC, with internal resistors included for ease of use. These indicators are perfect for main power, remote status, and instrumentation signals, providing reliable and long-lasting performance in harsh conditions.
Buy Dialight 6221401304F now and ensure durable, waterproof, and corrosion-resistant industrial indication solutions.
Frequently Asked Questions
Where can I buy DIALIGHT 6221401304F?
You can click on the BUY or RFQ button to purchase 6221401304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6221401304F?
You can download the 6221401304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6221401304F?
DIALIGHT
