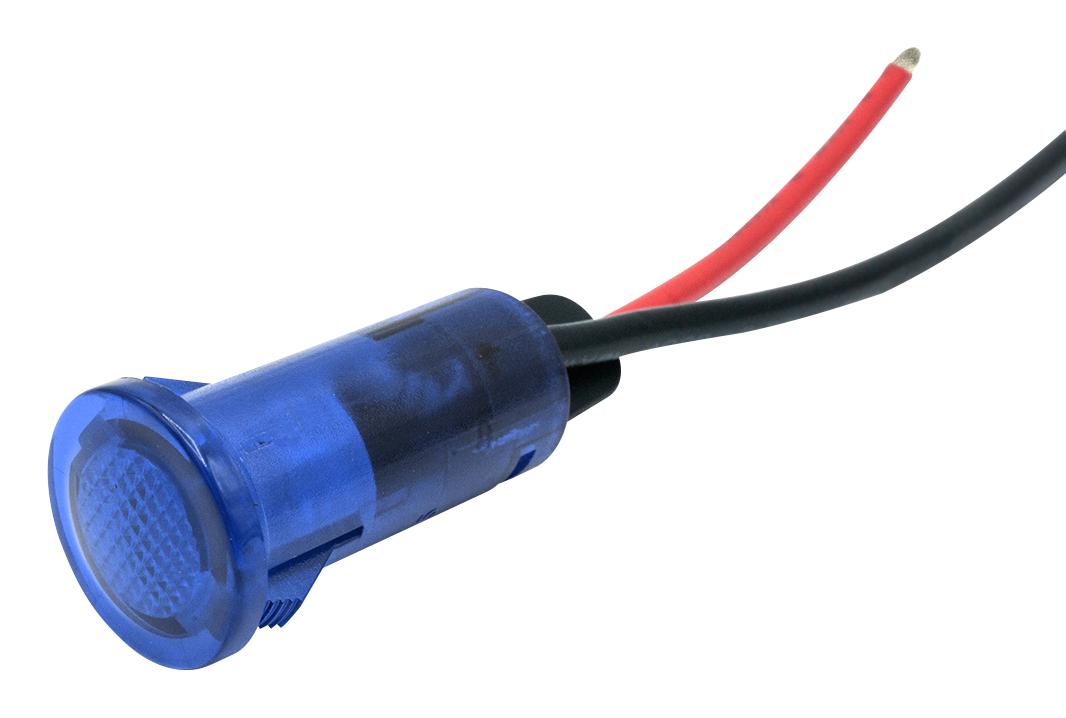

DIALIGHT 6551404103F LED Panel Indicator
The Dialight 655 series are 1/2-inch snap-in panel mount indicators suitable for main power, remote power, status, instrumentation, maintenance, and warning signals. They operate at 12VDC or 24VDC with a current of 20mA and feature various brightness levels such as 45mcd to 140mcd. Available in flat and domed lens styles, these indicators include solder terminals or wire leads for electrical connections. They fit panels with a 0.50-inch hole, support panel thicknesses up to 0.138 or 0.216 inches, and operate efficiently within -20°C to +85°C temperature ranges.
DIALIGHT 6551404103F LED Panel Indicator Specifications:
- Voltage Options: 12VDC & 24VDC
- Operating Temp: -20°C to +85°C (-4°F to +185°F)
- Storage Temp: -20°C to +85°C (-4°F to +185°F)
- Electrical Connection: Solder terminals (Flat Lens) or wire leads
- Housing Material: Polycarbonate
- Terminals: Brass—Nickel Plated (Flat Lens only)
- Wire Leads: 18 AWG (Flat Lens), 26 AWG (Domed Lens)
- Mounting Hole Size: 0.50 inches (12.7mm)
- Max Panel Thickness: 0.138 inches for domed, 0.216 inches for flat lens
- Lens Styles: Flat and domed
- Colors: Red, Green, Yellow, Blue
- Brightness: 45mcd to 140mcd depending on model
Buy the Dialight Series 655 LED Panel Mount Indicators: 6551404103F
Enhance your electrical panels with the Dialight Series 655 LED indicators, designed for durability and versatile application. These indicators provide clear power, status, and warning signals with multiple brightness levels and color options. Easy to install with snap-in mounting, they suit various panel thicknesses and operate efficiently from -20°C to +85°C. Reliable and energy-efficient, these indicators are ideal for industrial, instrumentation, or maintenance environments. Purchase online today for fast delivery and trusted performance.
Buy Dialight Series 655 LED Panel Mount Indicators now and experience reliable power indication with outstanding visibility and durability.
Frequently Asked Questions
Where can I buy DIALIGHT 6551404103F?
You can click on the BUY or RFQ button to purchase 6551404103F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551404103F?
You can download the 6551404103F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551404103F?
DIALIGHT
