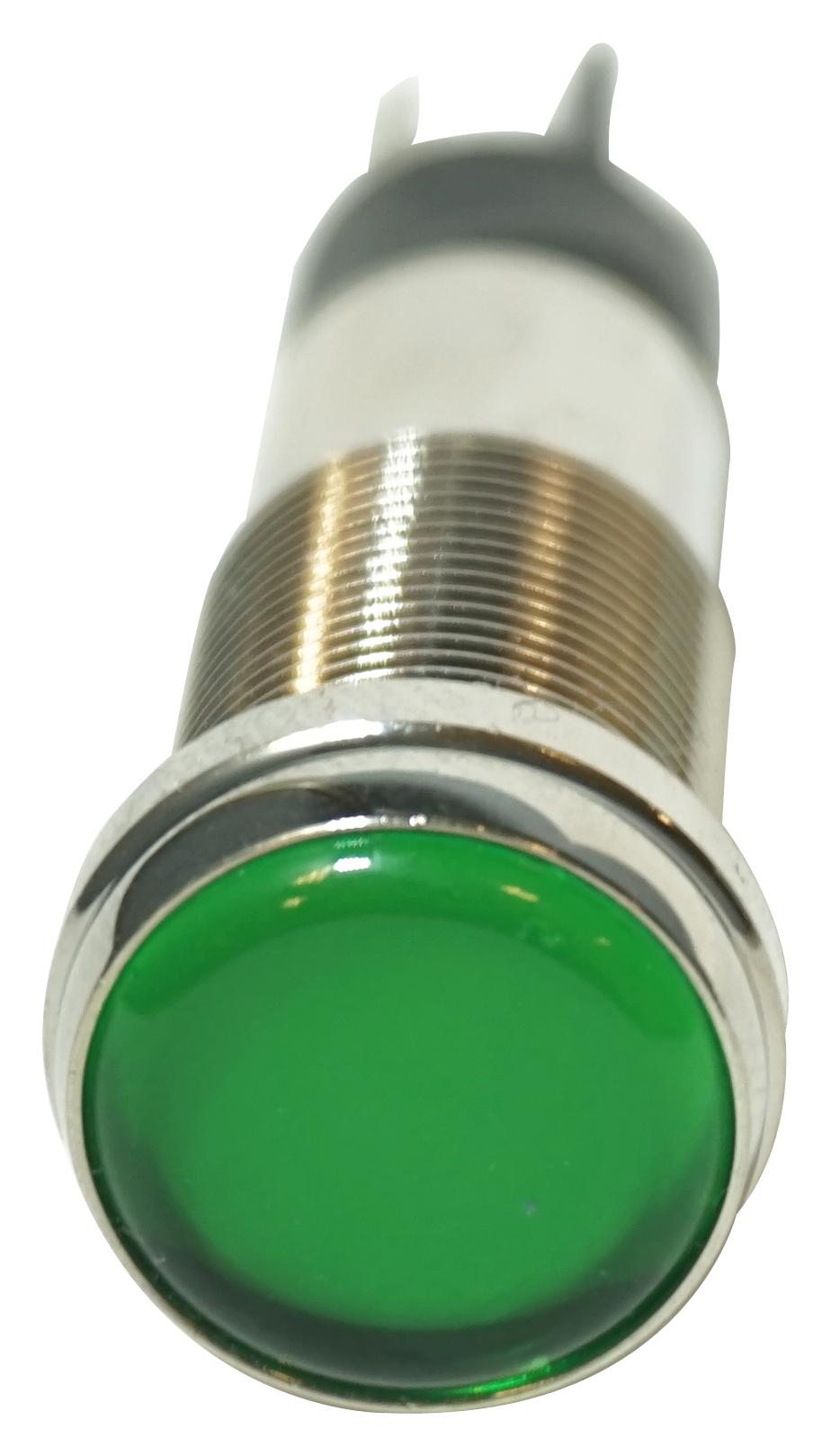

DIALIGHT 6561206304F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a wide range of color and voltage options. They are suitable for instrument panels, safety applications, power generation, and transportation systems. Constructed with nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and various terminal options (Faston or wire leads), the 656 Series ensures reliable performance and longevity. They are RoHS compliant and offer a long operational life of up to 100,000 hours.
DIALIGHT 6561206304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Leads: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- LED Code: 1206
- Lens Style: Flat
- Color: Green
- Voltage: 28 VDC
- Voltage Type: VDC
- Current: 18 MA
- Typical Life: 100K hours
- Viewing Angle: 50
