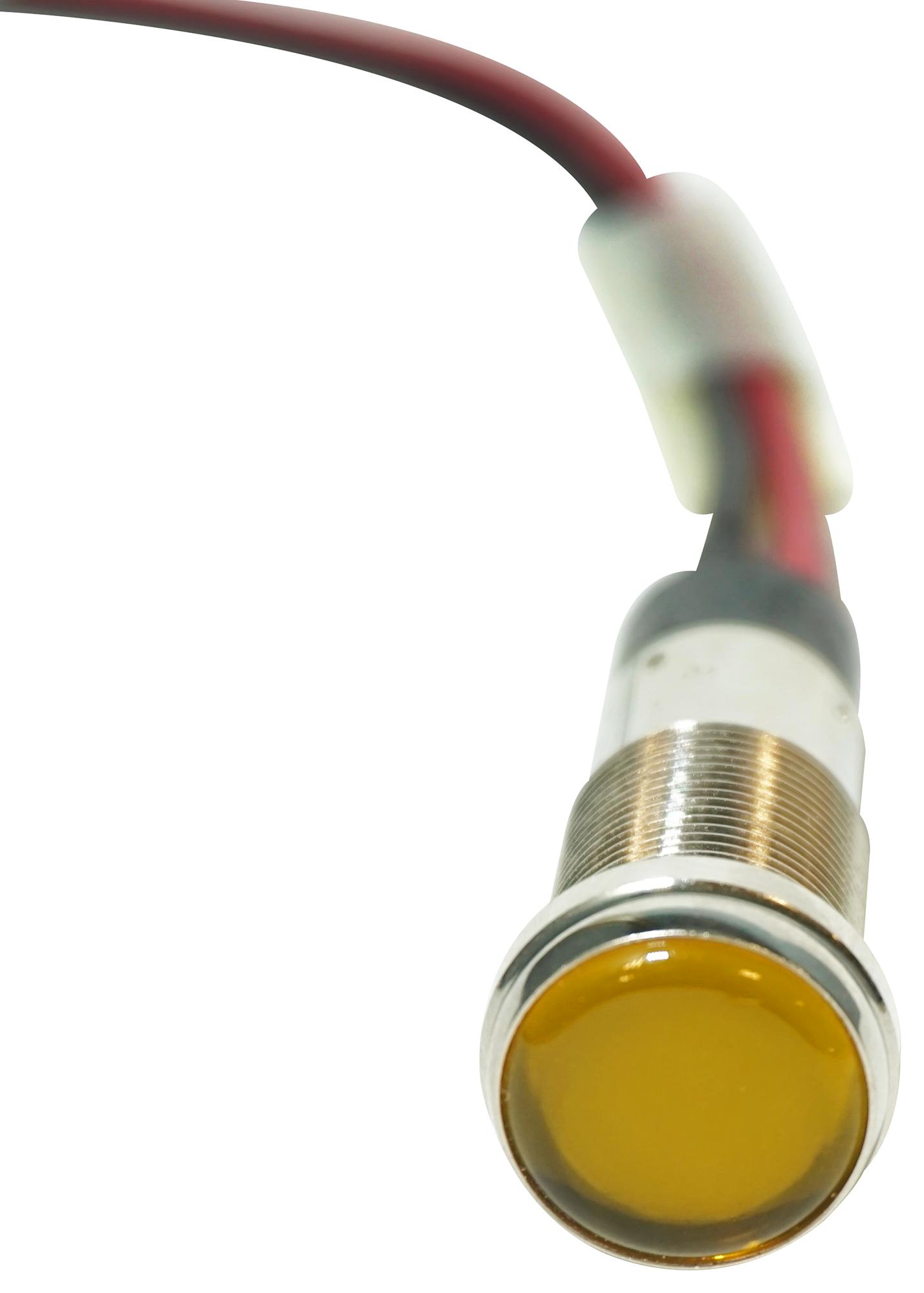

DIALIGHT 6561303303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are designed for robust performance in demanding environments. Utilizing InGaN and AllnGap technologies, these indicators provide high-intensity illumination in a range of colors and voltages. They are suitable for instrument panels, safety applications, power generation, and transportation systems. Constructed with nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and available with faston connectors or wire leads, the 656 Series offers a durable and versatile solution for visual indication needs. They are RoHS compliant and offer a long operational life of up to 100,000 hours.
DIALIGHT 6561303303F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- LED Code: 1303
- Color: Yellow
- Voltage: 12 VDC
- Current: 18 MA
- Viewing Angle: 50 (Flat Lens)
- Typical Life: 100K hours
Buy the 656-1303-303F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 656-1303-303F Panel Mount LED Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6561303303F?
You can click on the BUY or RFQ button to purchase 6561303303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6561303303F?
You can download the 6561303303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6561303303F?
DIALIGHT
