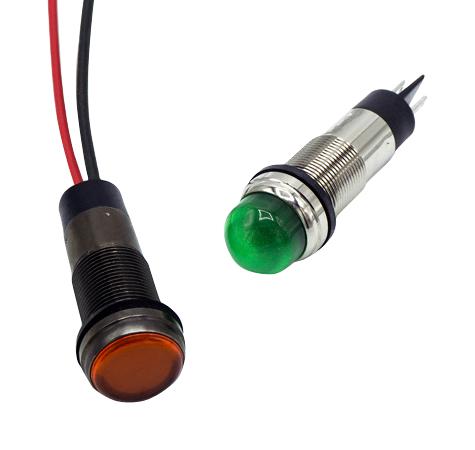

DIALIGHT 6563202304F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for a wide range of industrial applications. These indicators are suitable for safety systems, instrument panels, vending and gaming machines, display lighting, and transportation environments. They feature a durable brass housing with white or black nickel plating, a transparent polycarbonate lens (UL 94V-0), and various termination options including 110 Faston quick connect terminals or 6" wire leads. The indicators offer voltage options ranging from 5 to 125 V DC and 125, 230 V AC, ensuring compatibility with diverse power systems. Their operating temperature range of -30 °C to +85 °C and storage temperature range of -40 °C to +100 °C make them suitable for demanding environments.
DIALIGHT 6563202304F Panel Mount LED Indicator Specifications:
- lens_style: Flat or Domed
- voltage_options: 5 to 125 V DC and 125, 230 V AC (bi-color 5, 12, 24 V DC)
- operating_temp: -30 °C to +85 °C (-22 °F to +185 °F)
- storage_temp: -40 °C to +100 °C (-40 °F to +212 °F)
- electrical_connection: 110 Faston quick connect terminals or 6" wire leads
- housing_material: Brass—White or Black Nickel Plated
- lens_material: Transparent polycarbonate (UL 94V-0)
- wire_leads: 18 AWG
- mounting_hole_size: 0.500" (12.7 mm) Max
- max_panel_thickness: 0.450" (11.43 mm)
- mounting_torque: 5 in-lbs
- certifications_ratings: UL1598, NEMA 4X, IP66 / 67
