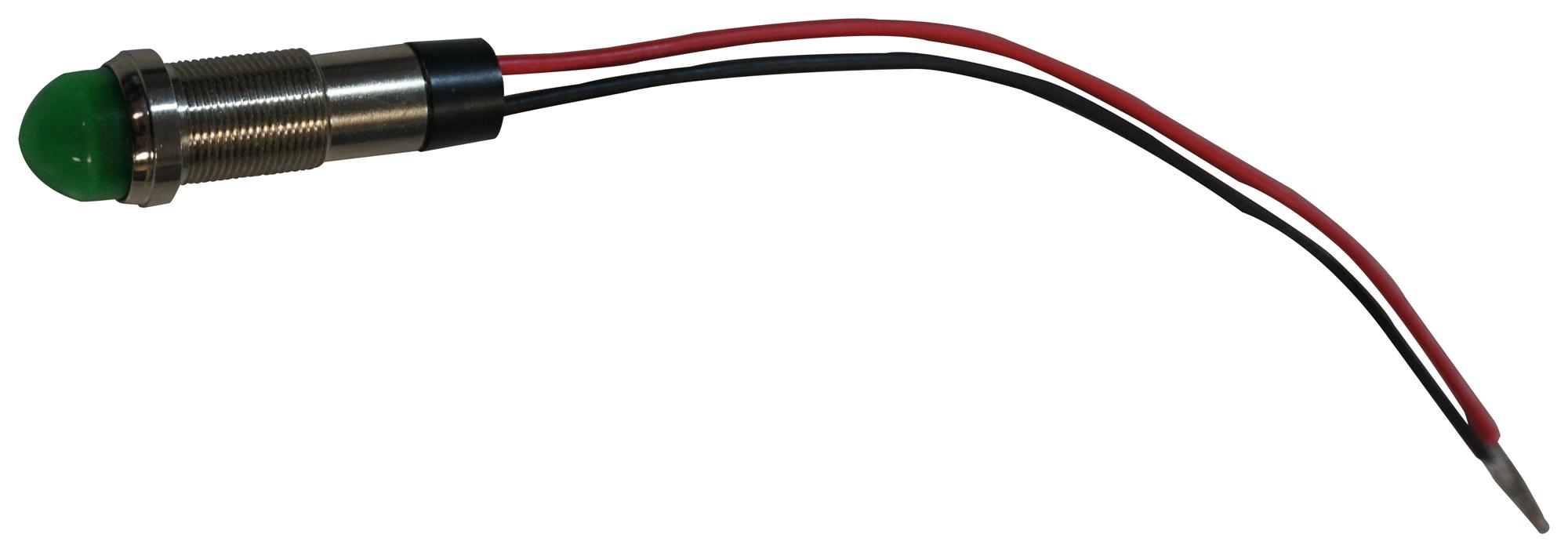

DIALIGHT 6563206303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a full spectrum of colors and voltages. They are suitable for instrument panels, safety applications, power generation, and transportation systems. Constructed with nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and various terminal options (Faston or wire leads), the 656 Series offers reliable performance and long-term durability. Certifications include UL1598, NEMA 4x, and IP66, ensuring compliance with industry standards. The indicators boast a long lifespan (typically 100,000 hours) and are daylight viewable, making them ideal for a wide range of applications.
DIALIGHT 6563206303F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Leads Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x, IP66
- RoHS Compliant: Yes (w/6C Exemption)
- Typical Lifespan: 100K hours
- Viewing Angle: 50 (Flat), TBD (Domed)
