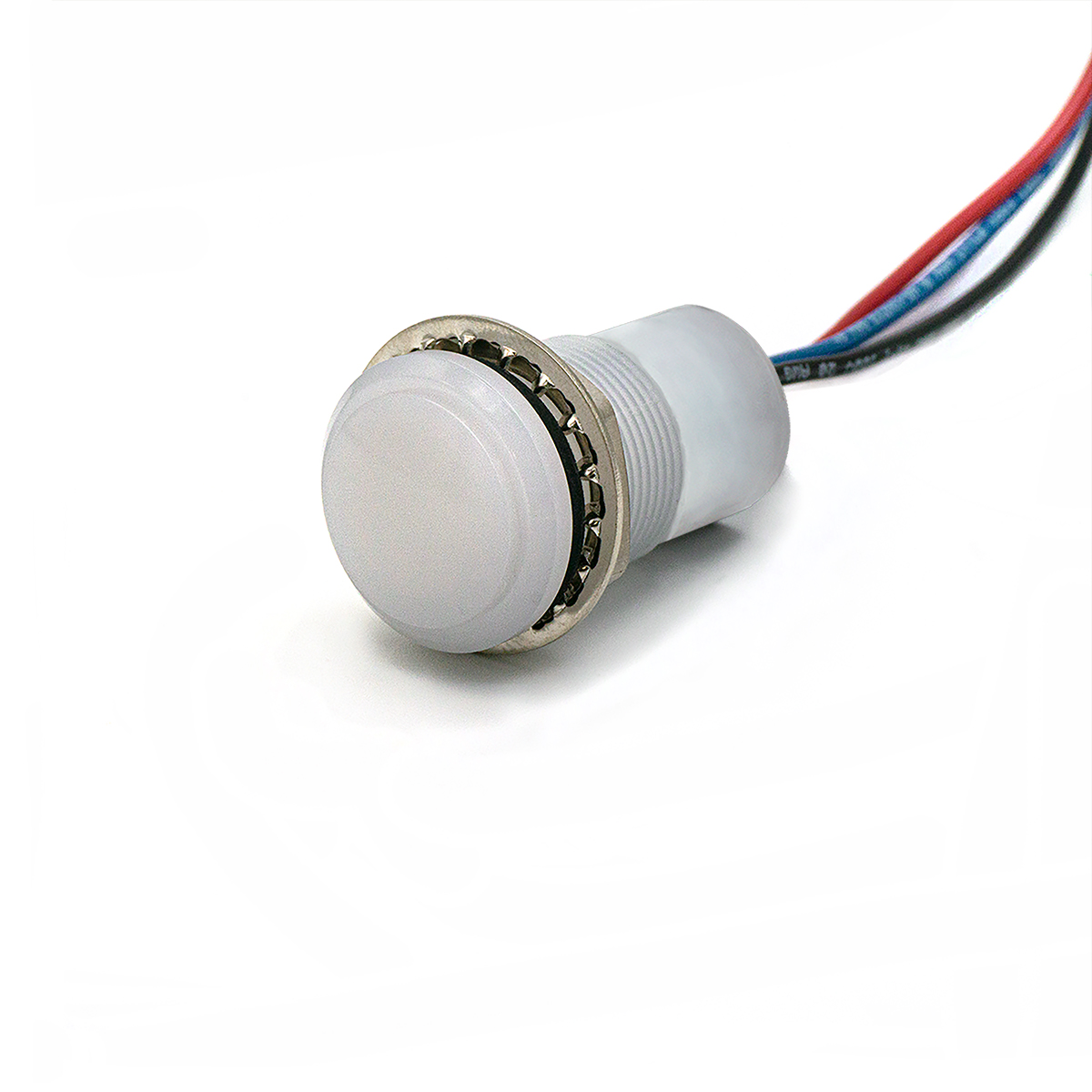

DIALIGHT 6571425303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial and commercial applications. Their durable polycarbonate housing and sealed construction ensure reliable performance in environments exposed to moisture, dust, and vibration. Commonly used in electrical control panels, wastewater treatment facilities, buses, agricultural equipment, and military vehicles, these indicators provide clear visual status signaling. Available in flat or domed lens options and a range of LED colors, the 657 Series offers versatility for diverse signaling needs. They are RoHS compliant and operate on a 10-30 VDC power supply, simplifying integration into existing systems.
DIALIGHT 6571425303F Bi-Color Panel Mount Indicator Specifications:
- Lens: Flat
- LED Color: Red
- Typical IF: 270 mA
- Typical VF: 10-30 VDC
- Typical Intensity: mcd
- Voltage Options: 10-30 VDC
- Operating Temp: -40 °C to +85 °C
- Storage Temp: -40 °C to +100 °C
- Electrical Connection: 18 AWG anti-capillary wire
- Housing: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads: 6"
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
Buy the 657-1425-303F DIALIGHT Bi-Color Panel Mount Indicator | myMectronic
Securely purchase the DIALIGHT 657-1425-303F Panel Mount Indicator and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6571425303F?
You can click on the BUY or RFQ button to purchase 6571425303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6571425303F?
You can download the 6571425303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6571425303F?
DIALIGHT
