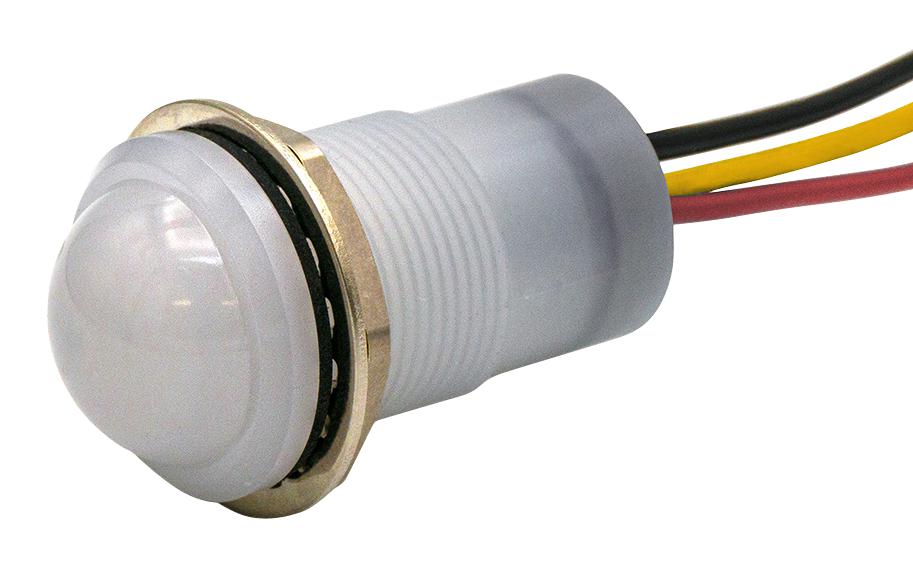

DIALIGHT 6572455303F Bi- and Tri-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are engineered for demanding applications requiring robust and reliable visual indication. Their watertight housing (NEMA 4X, IP67 rated) protects against moisture and contaminants, making them ideal for electrical control panels, wastewater treatment facilities, buses, agricultural equipment, and military vehicles. Available in bi-color and tri-color configurations, these indicators offer versatile signaling options. The polycarbonate lens and housing ensure durability, while the anti-capillary wire leads provide secure electrical connections. With a wide voltage range (10-30 VDC) and a variety of lens options (flat or domed), the 657 Series provides a flexible solution for status indication in industrial settings.
DIALIGHT 6572455303F Bi- and Tri-Color Panel Mount Indicator Specifications:
- Lens Type: Flat
- LED Color: Red
- Typical IF: 270 mA
- Typical VF: 10-30 VDC
- Typical Intensity: 255 mcd
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +100 °C
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads: 6"
- Lock Washer Material: White Nickel Plated Bronze
- Nut Material: White Nickel Plated Brass
