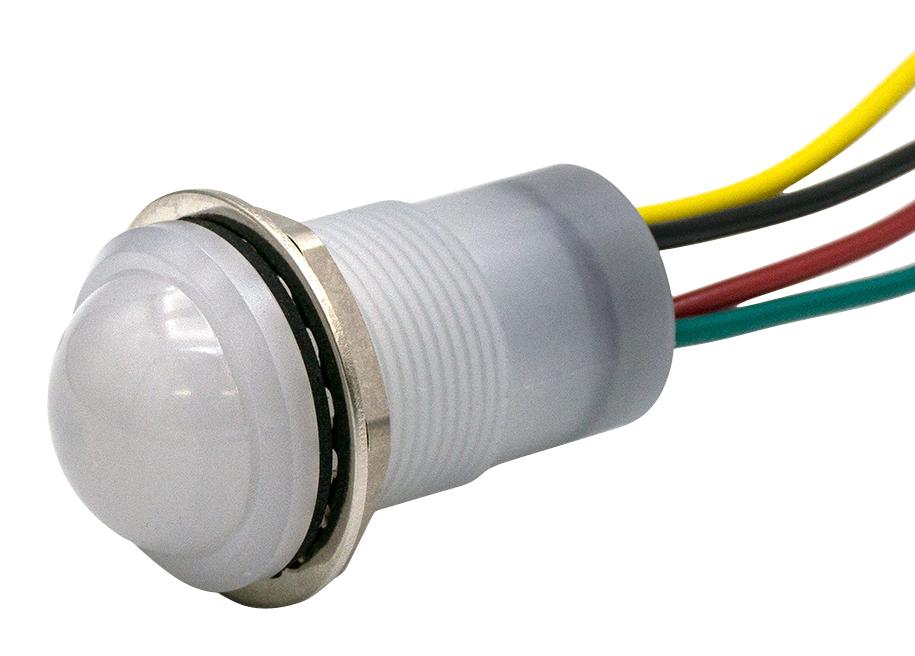

DIALIGHT 6572495303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust and reliable signaling devices designed for demanding industrial environments. Their watertight housing (NEMA 4X, IP67 rated) protects against moisture and dust, making them ideal for applications such as electrical control panels, wastewater treatment facilities, buses, agricultural equipment, and military vehicles. Available in bi-color and tri-color configurations, these indicators provide clear visual status indication. They operate on a 10-30 VDC power supply and feature polycarbonate housing and lens for durability. The indicators are RoHS compliant and offer a wide range of color options to suit various signaling needs.
DIALIGHT 6572495303F Bi-Color Panel Mount Indicator Specifications:
- Lens Type: Domed
- LED Color: Green, Yellow
- Typical IF: 20 mA
- Typical VF: 10-30 VDC
- Typical Intensity: 260 mcd
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +100 °C
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads: 6"
- Lock Washer Material: White Nickel Plated Bronze
- Nut Material: White Nickel Plated Brass
