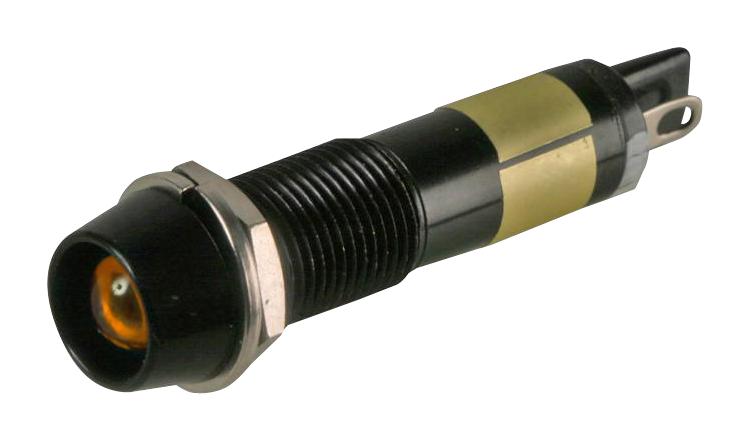

DIALIGHT 6792322333F Watertight Panel Indicator
The 679 series watertight panel mount indicator features orange LED illumination designed for harsh environments and precise applications. Operating at 12V DC with a 20mA current, it consumes up to 90% less power than incandescent indicators, producing no heat. Constructed with black plated brass, it offers a recessed LED front mounting option, suitable for panels up to 9.5mm thick with gasket. Certified NEMA 4X and IP66, it withstands water, dust, and extreme temperatures from -20°C to +75°C, ensuring durability and reliable performance in demanding industrial and instrumentation environments.
DIALIGHT 6792322333F Watertight Panel Indicator Specifications:
- Housing Material: Black plated brass
- Mounting Hole Diameter: 9.5 mm
- Max Panel Thickness: 9.5 mm with gasket, 8 mm without gasket
- Mounting Torque: 0.362 lbs/ft (6 kg·cm)
- Operating Voltage: 6, 12, & 24 VDC (no resistor required)
- Operating Temperature Range: -20°C to +75°C
- Storage Temperature Range: -40°F to +212°F (-40°C to +100°C)
- Electrical Connection: Solder terminals and wire leads
- LED Color: Orange
- Power Consumption: Up to 90% less than incandescent, 20mA current at 12V
- Body Construction: Chrome or black plated brass
- Certifications: NEMA 4X, IP66, RoHS compliant
- Dimensions: 13.5 mm x 15 mm (depth), external mounting footprint compatible with industry standards
Buy the Dialight Series Watertight Panel Mount Indicators: 6792322333F
Order the Dialight 679 series watertight panel mount indicator online today to ensure durable, energy-efficient, and reliable LED status indication for demanding environments. With certification to NEMA 4X and IP66 standards, this indicator is perfect for harsh industrial conditions. Its compact design, easy front mounting, and long lifespan of up to 100,000 hours make it ideal for instrumentation, automation, and control panels. Enjoy quick delivery and expert support when purchasing this high-performance, low-power LED indicator online now.
Buy Dialight 6792322333F now and experience unmatched reliability, energy efficiency, and robust water and dust resistance suitable for critical industrial applications.
Frequently Asked Questions
Where can I buy DIALIGHT 6792322333F?
You can click on the BUY or RFQ button to purchase 6792322333F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6792322333F?
You can download the 6792322333F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6792322333F?
DIALIGHT
