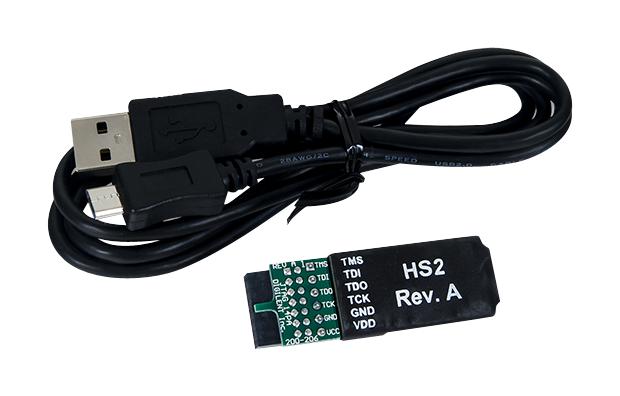

DIGILENT 410249 JTAG Programming Cable
The Digilent JTAG-HS2 programming cable provides a high-speed programming solution for Xilinx field-programmable gate arrays (FPGAs). Fully compatible with Xilinx tools, it supports IEEE 1149.7-2009 Class T0 - Class T4, including 2-Wire JTAG. The cable's high-speed USB2 port enables programming at up to 30Mbit/sec, and it also includes two configurable SPI ports for communication with various SPI peripherals. It's an all-in-one solution for FPGA programming and SPI communication.
DIGILENT 410249 JTAG Programming Cable Specifications:
- Programming: Xilinx FPGAs
- Compatibility: Xilinx tools (iMPACT, Chipscope, EDK)
- Scan Formats: JScan0-JScan3, MScan, OScan0 - OScan7
- Class: T0 - T4 JTAG Target Systems
- USB Port: High-Speed USB2 (up to 30Mbit/sec)
- SPI Ports: Two configurable ports (modes 0-3 up to 30Mbit/sec)
- Voltage: 1.8V to 5V
- Current: Max 50mA
- Resistors: 100 ohm between output and I/O pins
- Pull-ups: 100K ohm on TMS, TDI, TDO, and TCK signals
- Adept SDK: Fully supported
- SPI Modes: 0, 1, 2, and 3
Buy the 410-249 DIGILENT JTAG Programming Cable | myMectronic
Purchase the Digilent JTAG-HS2 programming cable securely and reliably for your FPGA development needs.
Buy Now
Frequently Asked Questions
Where can I buy DIGILENT 410249?
You can click on the BUY or RFQ button to purchase 410249 from an authorized DIGILENT distributor.
How do I troubleshoot issues or seek technical support for part 410249?
You can download the 410249 datasheet or visit the DIGILENT website for support.
Who is the manufacturer of 410249?
DIGILENT
