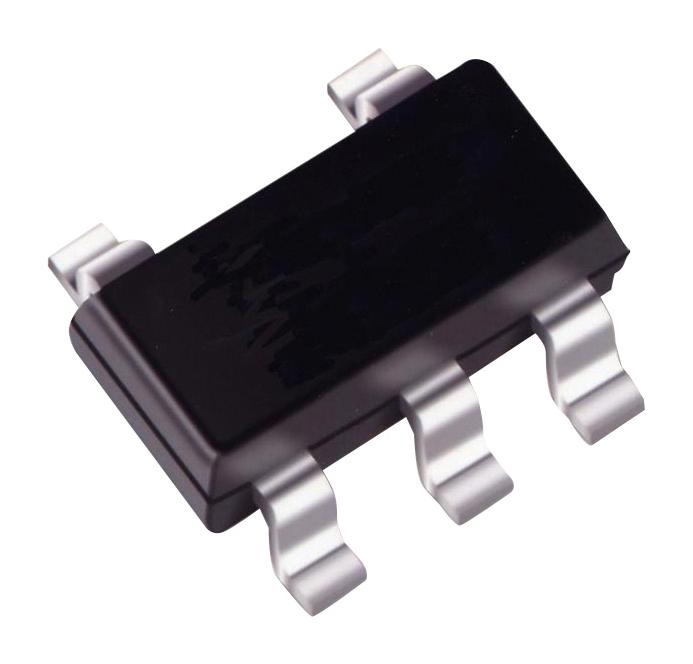

DIODES INC. 74AHC1G02QSE7 Automotive NOR Gate
The 74AHC1G02Q is an automotive-grade, single two-input positive NOR gate with a push-pull output, designed for operation from 2.0V to 5.5V. It features CMOS low-power consumption, Schmitt trigger inputs for slower input signals, and wide temperature tolerance from -40°C to +125°C. The device provides balanced propagation delays, high ESD protection exceeding 2000-V human body model, and is RoHS compliant, halogen, and antimony free. Ideal for automotive, industrial control, automation, and high-reliability communication applications requiring robust performance and change control.
DIODES INC. 74AHC1G02QSE7 Automotive NOR Gate Specifications:
- Supply Voltage Range: 2.0V to 5.5V
- Operating Temperature: -40°C to +125°C
- Input Voltage Range: 0 to Vcc
- Output Voltage: 0 to Vcc
- High-Level Output Current: 4mA at 4.5V
- Voltage Tolerance for Inputs and Outputs: ±0.5V
- ESD Protection: >2000V Human Body Model, >1000V Charged Device Model
- Package Types: SOT353 and SOT25, with dimensions approximately 2.15mm x 2.1mm x 11mm and 3.0mm x 2.8mm x 1.2mm respectively
- Total Power Dissipation: 250mW
- Lead Finish: Matte Tin Plated
- RoHS, Halogen and Antimony free, AEC-Q100 qualified
- Switching Delay (Typical): 1.0 to 114 ns depending on load and voltage
- Pin configuration suitable for surface mounting with recommended pad layouts
- Mechanical weight approximately 0.0158g (SOT25) and 0.0064g (SOT353)
Buy the Buy Diodes 74AHC1G02Q Part Number 74AHC1G02QSE7 Online
Purchase the premium Diodes 74AHC1G02Q today for reliable automotive logic switching, high ESD protection, and low power consumption. This single two-input positive NOR gate features wide temperature operation from -40°C to +125°C, making it ideal for automotive, industrial controls, automation, and high-reliability communication applications. With proven compliance to RoHS and AEC-Q100 standards, it offers balanced propagation delays and robust performance in demanding environments. Get your supply today and enhance your project's reliability with this green, lead-free device designed for long-term industrial use.
Order your Diodes 74AHC1G02Q automotive NOR gate today and ensure robust, low-power logic performance for industrial and automotive projects.
Frequently Asked Questions
Where can I buy DIODES INC. 74AHC1G02QSE7?
You can click on the BUY or RFQ button to purchase 74AHC1G02QSE7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74AHC1G02QSE7?
You can download the 74AHC1G02QSE7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74AHC1G02QSE7?
DIODES INC.
