DIODES INC. 74AHC1G08QW57 Logic Gate
The 74AHC1G080 is an automotive-grade single two-input positive AND gate with a push-pull output, designed for operation between 2.0V and 5.5V. It features CMOS low-power consumption, Schmitt trigger action for slower input signals, balanced propagation delays, and high ESD protection exceeding 2000V for human body model. Suitable for automotive, industrial, and communication applications, it is qualified under AEC-Q100, RoHS compliant, halogen and antimony free, and manufactured in IATF 16949 certified facilities, ensuring high reliability and compliance with strict standards.
DIODES INC. 74AHC1G08QW57 Logic Gate Specifications:
- Supply Voltage Range: 2.0V to 5.5V
- Operating Junction Temperature: -40°C to +125°C
- ESD Protection: >2000V Human Body Model, >1000V Charged Device Model
- Voltage Applied to Output: -0.5V to Vcc + 0.5V
- Input Voltage Range: 0V to Vcc
- Output Drive Current: 8mA at 4.5V
- Total Power Dissipation: 250mW
- CMOS Low-Power Consumption
- Schmitt Trigger Inputs
- Package Options: SOT25 and SOT353
- Lead-Free and RoHS Compliant
- Operating Ambient Temperature: -40°C to +125°C
- Maximum Junction Temperature: +150°C
- Moisture Sensitivity Level: 1
- Package Dimensions: SOT25 approx 2.1mm x 2.1mm x 1.1mm; SOT353 approx 3.0mm x 2.8mm x 1.2mm

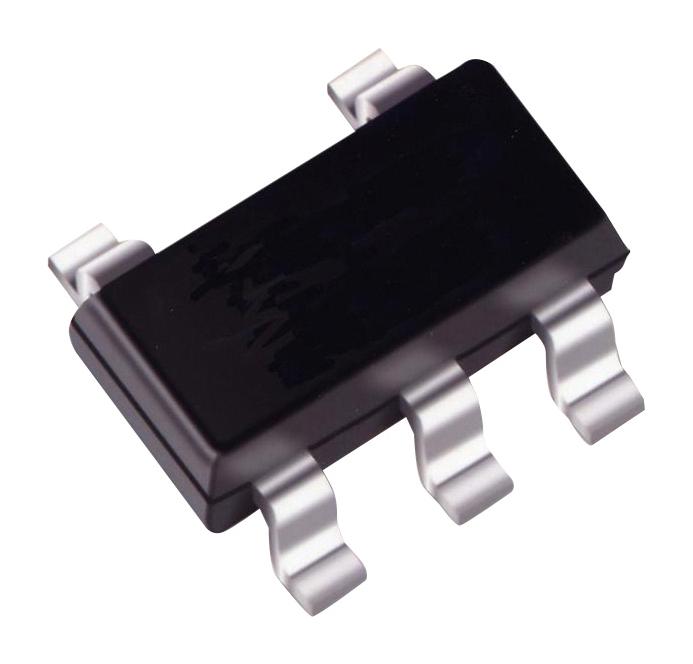

Buy the Buy Diodes Logic Gate Part Number 74AHC1G08QW57 Online
Purchase the Diodes 74AHC1G08QW57 series two-input automotive logic gate online today. This high-reliability, low-power CMOS device features Schmitt trigger inputs, high ESD protection, and is qualified for automotive applications under AEC-Q100. With a wide operating voltage range from 2.0V to 5.5V and temperature tolerance from -40°C to +125°C, it is ideal for industrial, communication, and automotive control systems. Buy now for seamless integration into your high-performance projects and enjoy prompt delivery and excellent quality assurance.
Order your Diodes Series74AHC1G08QW57 automotive-grade AND gate today and ensure reliable operation in your critical control systems.
Frequently Asked Questions
Where can I buy DIODES INC. 74AHC1G08QW57?
You can click on the BUY or RFQ button to purchase 74AHC1G08QW57 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74AHC1G08QW57?
You can download the 74AHC1G08QW57 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74AHC1G08QW57?
DIODES INC.
