DIODES INC. 74AHCT1G86QW57 Exclusive OR Gate
The 74AHCT1G86Q is an automotive-grade, lead-free, positive exclusive-OR gate featuring a standard push-pull output and CMOS low-power consumption. Designed for a supply voltage range of 4.5V to 5.5V, it offers high drive strength and robust ESD protection exceeding 2000V. Suitable for automotive, industrial, and communications applications, this device performs the Boolean function Y=A⊕B and is compliant with RoHS, halogen, and antimony-free standards. It is qualified for high-reliability environments, manufactured under strict change control, and tested for durability across wide temperature ranges from -40°C to +125°C.
DIODES INC. 74AHCT1G86QW57 Exclusive OR Gate Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Operating Temperature: -40°C to +125°C
- Output Drive: 8mA at 5.0V
- ESD Protection: >2000V Human Body Model, >1000V Charged Device Model
- Low Power CMOS Technology
- Boolean Function: Y=A⊕B (Exclusive-OR)
- Package Types: SOT25 and SOT353
- Package Size: 2.15mm x 2.1mm x 11mm (SOT353), 3.0mm x 2.8mm x 1.2mm (SOT25)
- Lead Finish: Matte Tin Plated
- RoHS, Halogen and Antimony-Free
- Application: Automotive, industrial controls, high-reliability networking
- Manufactured per AEC-Q100, PPAP capable, and ISO/TS 16949 certified
- Total Power Dissipation: 250mW at 25°C
- Absolute Max Ratings: Voltage: -0.5V to 6.5V, Storage Temperature: -65°C to +150°C

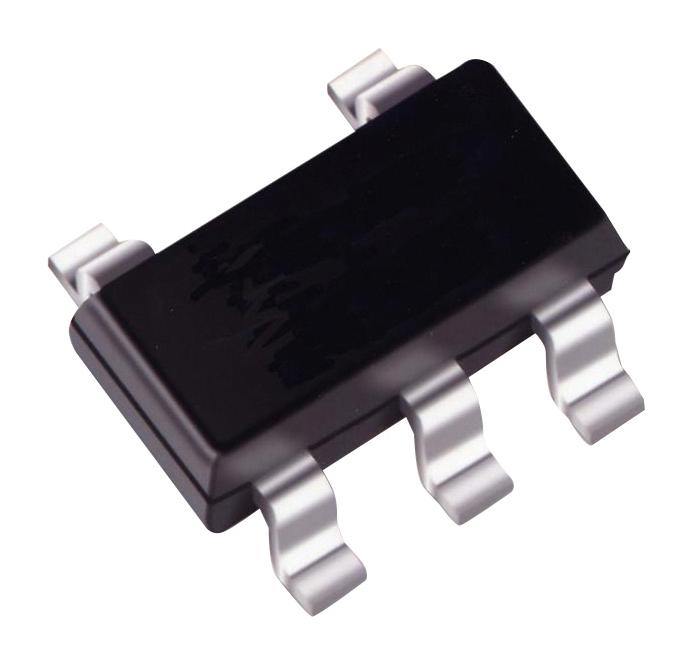

Buy the Buy Diodes 74AHCT1G86Q Part Number 74AHCT1G86QW57 Online
Purchase the Diodes 74AHCT1G86Q today online to benefit from its automotive-grade reliability, lead-free construction, and robust ESD protection. This high-performance logic device operates across a wide temperature range from -40°C to +125°C, making it ideal for automotive, industrial, and communication systems. Featuring low power consumption and balanced propagation delays, it ensures efficient circuit operation. Designed with strict quality standards and RoHS compliance, ordering online provides quick access to this essential component, supporting your high-reliability projects with trusted performance and durability.
Order your Diodes 74AHCT1G86Q reliable exclusive OR gate today and enhance your automotive or industrial logic circuits with high-quality, lead-free design.
Frequently Asked Questions
Where can I buy DIODES INC. 74AHCT1G86QW57?
You can click on the BUY or RFQ button to purchase 74AHCT1G86QW57 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part 74AHCT1G86QW57?
You can download the 74AHCT1G86QW57 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of 74AHCT1G86QW57?
DIODES INC.
