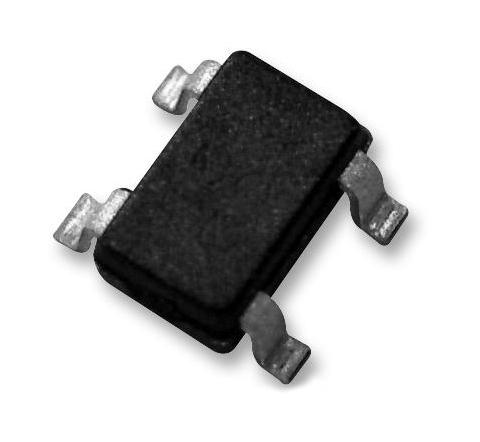

DIODES INC. ABS21013 Bridge Rectifier
The ABS210 is a green, surface-mounted glass passivated bridge rectifier designed for compact, high-current applications. With a 2A maximum current and a 1000V peak reverse voltage, it features a low forward voltage drop and RoHS compliance. Suitable for AC to DC full-wave rectification in SMPS, LED lighting, adapters, and telecommunication devices, it boasts a molded plastic case, lead-free matte tin finish, and moisture sensitivity level 1, ensuring reliable performance in space-constrained and environmentally conscious designs.
DIODES INC. ABS21013 Bridge Rectifier Specifications:
- Peak Repetitive Reverse Voltage VraM: 1000 V
- Working Peak Reverse Voltage Vawm: 1000 V
- DC Blocking Voltage Va: 1000 V
- RMS Reverse Voltage Vavams: 700 V
- Average Rectified Output Current: 2.0 A at +50°C
- Peak Surge Forward Current: 60 A
- Thermal Resistance, Junction to Ambient: 62.5 °C/W
- Thermal Resistance, Junction to Lead: 25 °C/W
- Operating Temperature Range: -55°C to +150°C
- Forward Voltage (per element): 1.4 V at 2 A
- Leakage Current: 500 μA at 1000 V, 128°C
- Total Capacitance: 17 pF at 4 V, 1.0 MHz
- Case Material: Molded Plastic
- Case Type: SOPA-4
- Dimension Range: Length 4.80-5.30 mm, Width 6.00-6.80 mm, Height 4.20-4.60 mm
- Polarity: Marked on body
- Terminals: Lead-free, matte tin finish
- Moisture Sensitivity: Level 1
Buy the Greenbridge Rectifier – Reliable Bridge Rectifier for Industrial Applications
Order the green surface-mount bridge rectifier now to enjoy efficient full-wave AC to DC conversion with a 2A current rating and 1000V peak reverse voltage. Its compact SOPA-4 package saves space on PCBs, making it ideal for applications like SMPS, LED lighting, and adapters. The RoHS-compliant, lead-free finish ensures environmental safety, while its high current capacity and low forward voltage drop deliver optimal performance. Secure your supply chain by purchasing conveniently online and ensure reliable operation in your electronic designs.
Buy Diodes ABS210 now and experience unmatched reliability and performance in space-efficient, eco-friendly power rectification solutions.
Frequently Asked Questions
Where can I buy DIODES INC. ABS21013?
You can click on the BUY or RFQ button to purchase ABS21013 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part ABS21013?
You can download the ABS21013 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of ABS21013?
DIODES INC.
