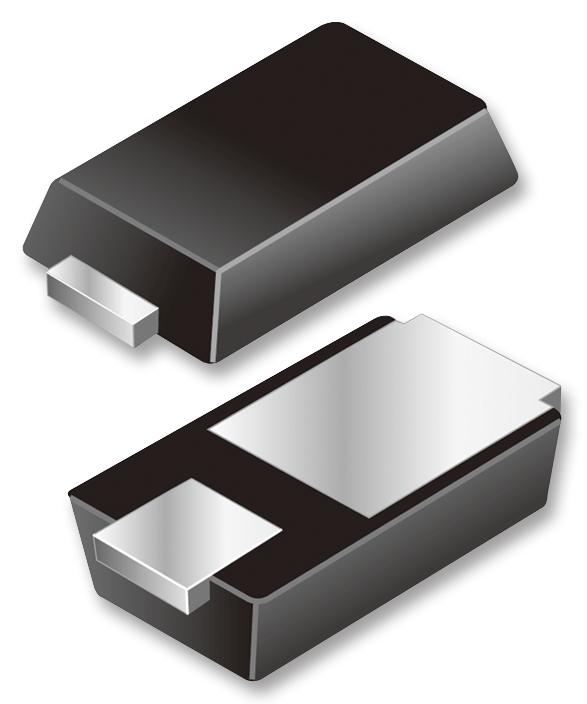

DIODES INC. AL580960P17 Constant Current LED Driver
The AL5809 is a cost-effective, two-terminal constant current linear LED driver suitable for offline LED lamps, signs, and illumination. It supports input voltages from 2.5V to 60V, providing precise LED current regulation with tolerance within 5% over a temperature range of -40°C to +125°C. The device features various fixed output currents from 15mA to 150mA, in robust packages PowerDI123 or SOD-123, offering high power dissipation, thermal stability, and RoHS compliance. Its simple design supports high-side or low-side LED chain driving, adjustable PWM dimming, and is ideal for energy-efficient, reliable LED lighting systems.
DIODES INC. AL580960P17 Constant Current LED Driver Specifications:
- Operating Voltage Range: 2.5V to 60V
- Output Current Options: 15mA, 20mA, 25mA, 30mA, 40mA, 50mA, 60mA, 90mA, 100mA, 120mA, 150mA
- Temperature Range: -40°C to +125°C
- Power Dissipation: Up to 1.2W in PowerDI123 package
- Peak Voltage Between Input and Output: 80V
- LED Current Tolerance: ±5%
- Package Types: PowerDI123, SOD-123
- RoHS Compliant and Lead-Free
- Thermal Resistance: Junction-to-Case: 27.15°C/W (PowerDI123)
- Maximum Junction Temperature: +165°C
- Input Voltage Line Regulation: ±1%
- Short-circuit and Thermal Shutdown protection
Buy the Diodes Series AL5809 Constant Current LED Driver: AL580960P17
Discover the high-quality Diodes Series AL5809 constant current LED driver, available in robust packages supporting input voltages from 2.5V to 60V. With fixed output currents up to 150mA and 5% accuracy over a wide temperature range, it is ideal for energy-efficient LED lamps, signs, and industrial lighting. Its RoHS compliance, thermal stability, and simple high-side or low-side configuration make integration seamless. Purchase online today and enhance your LED lighting projects with reliable, durable, and efficient driver solutions from Diodes.
Order your Diodes Series AL5809 constant current LED driver with fixed 150mA current today and ensure long-lasting, stable LED lighting for your projects.
Frequently Asked Questions
Where can I buy DIODES INC. AL580960P17?
You can click on the BUY or RFQ button to purchase AL580960P17 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part AL580960P17?
You can download the AL580960P17 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of AL580960P17?
DIODES INC.
