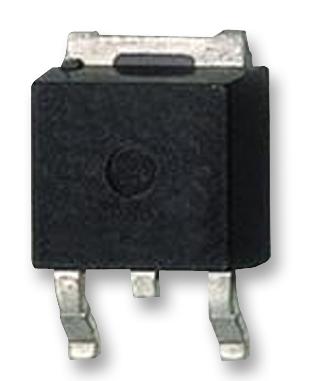

DIODES INC. AP1084D33G13 Voltage Regulator
The AP1084 is a low dropout positive adjustable or fixed-mode voltage regulator capable of providing up to 5A of output current. Designed for low voltage applications, it features a dropout voltage under 1.4V at full load, ensuring stable power for high-speed logic, bus termination, and VGA cards. It includes thermal shutdown, output current limiting, and fast transient response. The regulator offers adjustable output from 1.25V to Vin-1.4V and comes in various lead-free packages compliant with RoHS standards, ensuring durability and low noise operation.
DIODES INC. AP1084D33G13 Voltage Regulator Specifications:
- Output Current: 5A
- Dropout Voltage: Less than 1.4V at full load
- Adjustable Output Voltage Range: 1.25V to Vin-1.4V
- Input Voltage: Up to 12V
- Output Voltage Options: 1.5V, 1.8V, 2.5V, 3.3V, 5.0V or adjustable
- Thermal Shutdown: Yes
- Built-in Current Limiting: Yes
- Package Types: T0252-3L, TO263-3L, T0220-3L
- RoHS Compliant: Yes, Lead-Free Packages
- Fast Transient Response: Yes
- Noise Rejection: Good
- Recommended Capacitors: 10uF aluminum electrolytic at output
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -65°C to +150°C
- Operating Temperature Range: 0°C to 125°C
- Voltage Regulation Accuracy: Typical 1%
Buy the Buy Diodes AP1084 Part Number AP1084D33G13 Online
Order the Diodes AP1084D33G13 voltage regulator online today for precise and reliable power regulation. Designed with low dropout voltage, high current capacity, thermal shutdown, and fast transient response, this component is perfect for low voltage ICs, high-speed logic, and VGA applications. It comes in lead-free packages compliant with RoHS standards, ensuring environmental safety and durability. Whether for professional projects or industrial systems, this regulator guarantees stable operation, excellent noise rejection, and simple implementation, making it the ideal choice for your power management needs.
Get Diodes AP1084D33G13 today—built for high current, low dropout voltage, thermal shutdown, and reliable regulation for sensitive electronics.
