DIODES INC. AP22804ASN7 Power Switch
The AP22804/AP22814 are lead-free, high-side power switches suitable for USB and hot-swap applications. They feature current-limited protection, fast short-circuit response, integrated output discharge, and comprehensive fault protections including over-current, over-temperature, and reverse voltage protection. Available in green RoHS-compliant packages (MSOP-8, SOT25, U-DFN2020-6), these devices support input voltages from 2.7V to 5.5V, with built-in soft-start, fault reporting, and thermal management functionalities. They are ideal for ultrabook power sequencing, consumer electronics, SSDs, and telecom systems.
DIODES INC. AP22804ASN7 Power Switch Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Output Current: 2.5A (AP22804), 3.0A (AP22814)
- On-resistance: 50mΩ typical
- Built-in Soft-start with 0.6ms Rise Time
- Fault Report (FLG) with 6ms Blanking Time
- ESD Protection: 2kV HBM, 200V MM
- Active Low or High Enable
- Over Current, Short Circuit, Over Temperature auto recovery
- Output Reverse Voltage / Current Protection
- Thermal shutdown at +140°C with +35°C hysteresis
- Boards designed with wide, short input/output traces and ground plane for thermal performance
- Supported packages: MSOP-8, SOT25, U-DFN2020-6
- RoHS compliant, halogen and antimony free
- Standard UL Recognized and IEC60950-1 CB certified

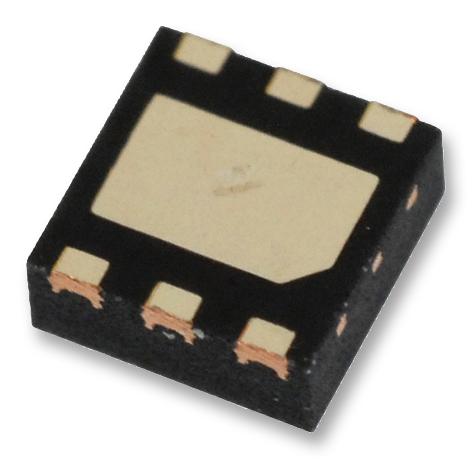

Buy the Buy Diodes Power Switch Part Number AP22804ASN7 Online
Discover the high-quality Diodes AP22804ASN7, a lead-free, high-side power switch designed for USB, ultrabooks, and consumer electronics. With current protection, fast response, built-in fault reporting, and thermal shutdown features, it ensures system robustness. Compatible with input voltages from 2.7V to 5.5V, this RoHS-compliant device offers reliable, safe switching with integrated discharge and reverse-voltage protection, making it ideal for power sequencing, hot-swap, SSD, and telecom systems. Purchase online today for proven performance and safety.
Buy Diodes AP22804ASN7 now and experience unmatched reliability and performance in USB and embedded power management applications.
Frequently Asked Questions
Where can I buy DIODES INC. AP22804ASN7?
You can click on the BUY or RFQ button to purchase AP22804ASN7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part AP22804ASN7?
You can download the AP22804ASN7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of AP22804ASN7?
DIODES INC.
