DIODES INC. B250A13F High-Current Schottky Rectifier
The diode series includes surface-mount Schottky barrier rectifiers designed for low-voltage, high-frequency inverters, and load protection applications. Featuring guard ring construction for transient protection, these devices offer high efficiency with low power-loss, surge overload capability up to 50A, and are suitable for automated assembly. Manufactured with lead-free, RoHS-compliant materials, they meet AEC-Q101 standards for high reliability, making them ideal for automotive, industrial, and consumer electronic projects requiring reliable polarity and freewheeling protection.
DIODES INC. B250A13F High-Current Schottky Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 20V (B220A), 30V (B230A), 40V (B240A), 50V (B250A), 60V (B260A)
- Working Peak Reverse Voltage: 20V to 60V
- DC Blocking Voltage: 14V to 42V
- Average Rectified Output Current: 2.0A
- Peak Forward Surge Current: 50A
- Surge Overload Rating: 50A peak
- Case: SMA/SMB plastic package
- Operating Temperature Range: -65°C to +150°C
- Thermal Resistance, Junction to Lead: SMA 25°C/W, SMB 20°C/W
- Maximum junction temperature: +150°C
- Lead Finish: Matte Tin, RoHS compliant
- Mechanical Dimensions: SMA/SMB package sizes conforming, detailed datasheet available
- Moisture Sensitivity Level: 1 per J-STD-020
- Humidity and moisture resistant, halogen and antimony free

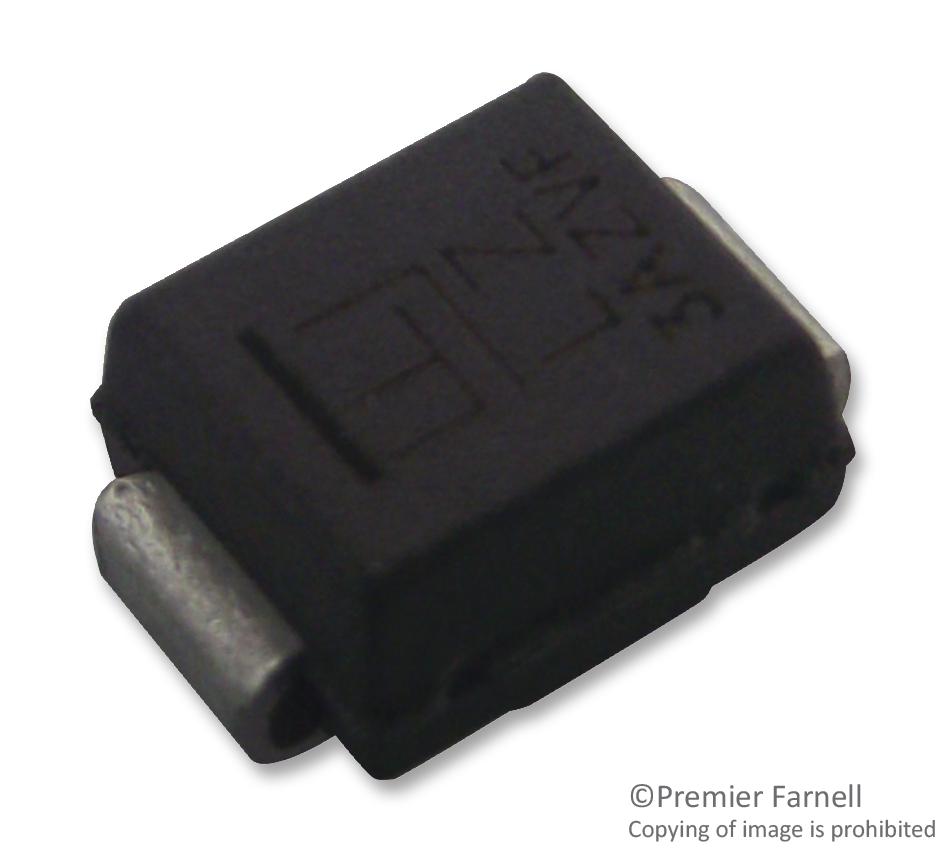

Buy the Diodes Series B250A13F Schottky Barrier Rectifier: B250A13F
Purchase the Diodes Series B250A13F Schottky barrier rectifier online today to benefit from its low forward voltage drop, high surge current capability, and RoHS compliant, lead-free design. Perfect for protecting your electronic systems in automotive, industrial, and consumer devices, this surface-mount component provides excellent reliability, quick switching, and efficient power management. Simply order now from our online store to secure this reliable rectifier for your critical applications and experience hassle-free delivery and support.
Order your Diodes Series B250A13F high-reliability Schottky rectifier today and ensure robust low-voltage, high-frequency protection for your electronic applications.
Frequently Asked Questions
Where can I buy DIODES INC. B250A13F?
You can click on the BUY or RFQ button to purchase B250A13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part B250A13F?
You can download the B250A13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of B250A13F?
DIODES INC.
