DIODES INC. DMN10H220LFVW7 Power MOSFET
The DMN10H220LFVW is a 100V N-channel enhancement mode MOSFET designed for efficient power management, featuring low on-resistance, fast switching capabilities, and a lead-free, RoHS-compliant, green molding compound package. It is suitable for load switching and high-efficiency power applications, with a molded plastic case, matte tin over copper terminals, and designed for automotive and industrial use. The device ensures reliability under various electrical and thermal conditions, with a maximum drain-source voltage of 100V and continuous drain current of 3A, making it an ideal choice for modern power systems requiring environmentally friendly components.
DIODES INC. DMN10H220LFVW7 Power MOSFET Specifications:
- Drain-Source Voltage: 100 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 3 A
- Maximum Body Diode Forward Current: 1 A
- Pulsed Drain Current: 4 A
- Total Power Dissipation: 2.4 W
- Thermal Resistance, Junction to Ambient: 53 °C/W
- Operating and Storage Temperature Range: -55°C to +150°C

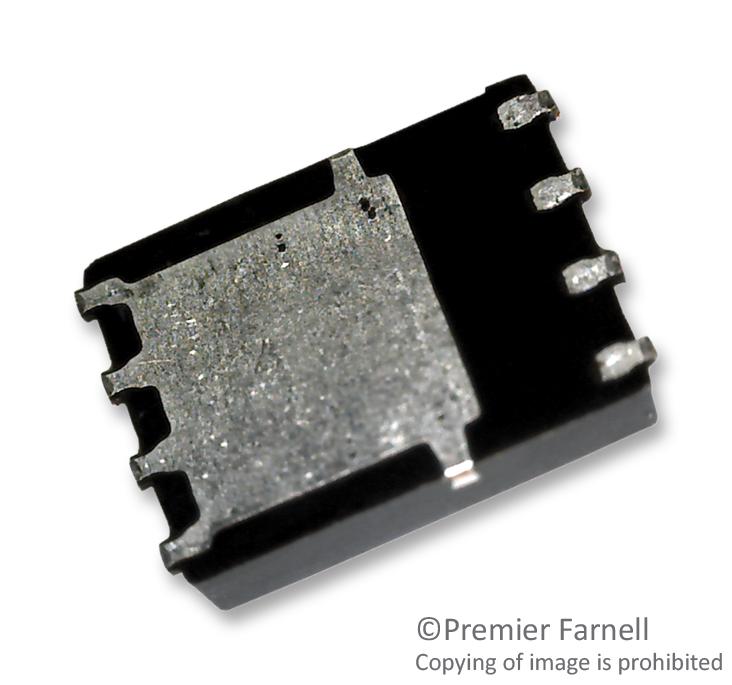

- Case: Molded Plastic PowerDI®3333-8
- Case Material: Green Molded Compound
- UL Flammability Rating: 94V-0
- Solderable per MIL-STD-202, Method 208
- Lead Finish: Matte Tin over Copper
- Level 1 Moisture Sensitivity, RoHS & REACH Compliant
- The device is designed for automotive (AEC-Q100/Q101/200 qualified) and industrial environments, ensuring low leakage, rapid switching, and environmental safety standards.
Buy the Buy Diodes Inc. DMN10H220LFVW Online
Secure your Diodes Inc. DMN10H220LFVW today for efficient and environmentally friendly power switching. This high-quality MOSFET offers reliable 100V, 3A performance, low on-resistance, and fast switching speed. Perfect for load switching, industrial automation, and automotive systems, it is RoHS compliant and lead-free. Available in a molded plastic case with tin-plated copper terminals, ensuring durability and easy soldering. Improve your power circuits with this environmentally safe component, supported by comprehensive datasheets and expert recommendations, and order online for quick delivery and seamless integration.
Order your Diodes Inc. DMN10H220LFVW today and enhance your power management projects with green, reliable, and high-performance MOSFETs.
