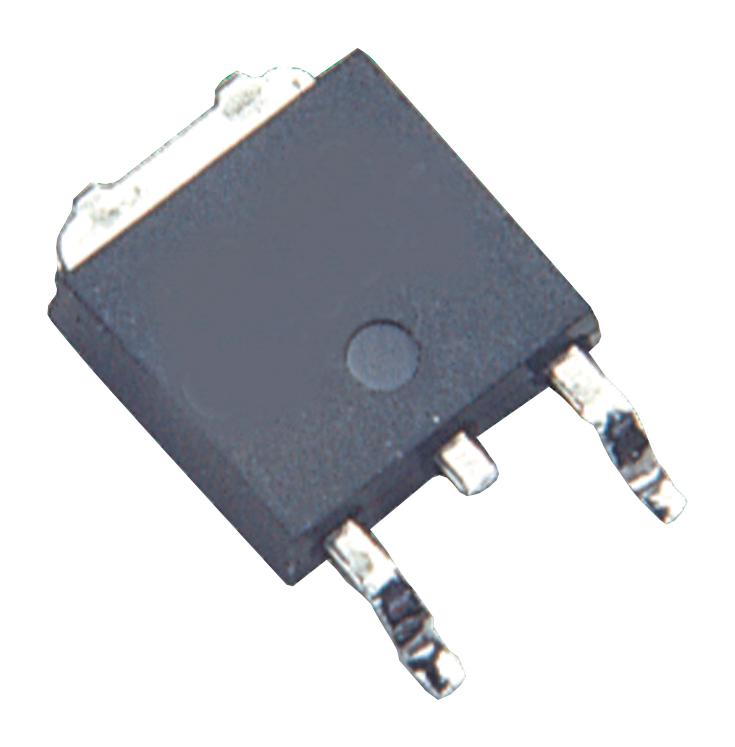

DIODES INC. DMTH4002SCTB13 High-Temperature Power MOSFET
The DMTH4002SCTB is a high-efficiency N-channel enhancement mode MOSFET designed for power management in automotive and industrial applications. Rated at 40V with a low Rds(on) of 3mΩ at 10V, it maintains operation at ambient temperatures up to +175°C, ensuring reliability in high-temperature environments. Its TO263AB package features matte tin over copper terminals, UL94V-0 flammability rating, and is RoHS compliant. Suitable for engine management, DC-DC converters, and body control electronics, this device offers excellent switching characteristics, low gate charge, and high current capacity, making it ideal for demanding power applications.
DIODES INC. DMTH4002SCTB13 High-Temperature Power MOSFET Specifications:
- Drain-Source Voltage: 40 V
- Gate-Source Voltage: ±20 V
- Continuous Drain Current: 136 A
- Maximum Body Diode Forward Current: 100 A
- Pulsed Drain Current: 760 A
- Avalanche Current: 19.2 A
- Power Dissipation: 6 W
- Thermal Resistance Junction to Ambient: 25 °C/W
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO263AB (D2PAK)
- Case Material: Molded plastic with green molding compound
- Flammability: UL 94V-0
- Lead Finish: Matte tin over copper
- Moisture Sensitivity: Level 1
- Total Gate Charge: 75 nC
- Gate Resistance: 1.04 Ω
- On-Resistance: 3 mΩ at Vgs=10V
- Gate Threshold Voltage: 2–4 V
Buy the Buy Diodes High-Temperature N-Channel MOSFET Part Number DMTH4002SCTB13 Online
Purchase the Diodes DMTH4002SCTB online to ensure reliable power switching in automotive and industrial environments. This high-temperature N-channel MOSFET features a 40V rating, low Rds(on) of 3mΩ, and operation up to +175°C for demanding applications. Its TO263AB package includes matte tin-plated copper terminals for excellent solderability and thermal performance. The device offers high current capacity, low gate charge, and high efficiency, making it ideal for engine management, DC-DC converters, and body control modules. Order today for fast delivery and superior power management solutions.
Get Diodes DMTH4002SCTB today—designed for high-temperature efficiency and automotive power management with low Rds(on) and robust performance.
