DIODES INC. DXTP03060CFG7 High-Voltage PNP Transistor
The DXTP03060CFG is a high-voltage PNP transistor in a PowerDI3333-8 package, rated for up to 60V, with a continuous collector current of -5.5A and peak pulse of -15A. This green, lead-free, RoHS-compliant device features low saturation voltage below 90mV at -1A, and is suitable for motor driving, line switching, and high-side switching applications. Its thermally efficient, compact design supports high-temperature operation up to +175°C, with wettable flanks for optical inspection. The transistor is ideal for dense, high-temperature environments requiring reliable switching performance.
DIODES INC. DXTP03060CFG7 High-Voltage PNP Transistor Specifications:
- Collector-Base Breakdown Voltage: -70V
- Collector-Emitter Voltage: -60V
- Emitter-Base Breakdown Voltage: 7V
- Continuous Collector Current: -5.5A
- Peak Pulse Current: -15A
- Power Dissipation: 1.07 W
- Thermal Resistance, Junction to Ambient: 65°C/W
- Operating Temperature Range: -55°C to +175°C
- JEDEC ESD Human Body Model: 4000V
- Case Material: Molded Plastic, Flammability Rating 94V-0
- Terminal Finish: Matte Tin Plated Leads
- Mechanical: PowerDI3333-8, Height: 3.30 mm, Width: 2.50 mm
- RoHS and REACH Compliant, Lead-Free, Halogen and Antimony Free

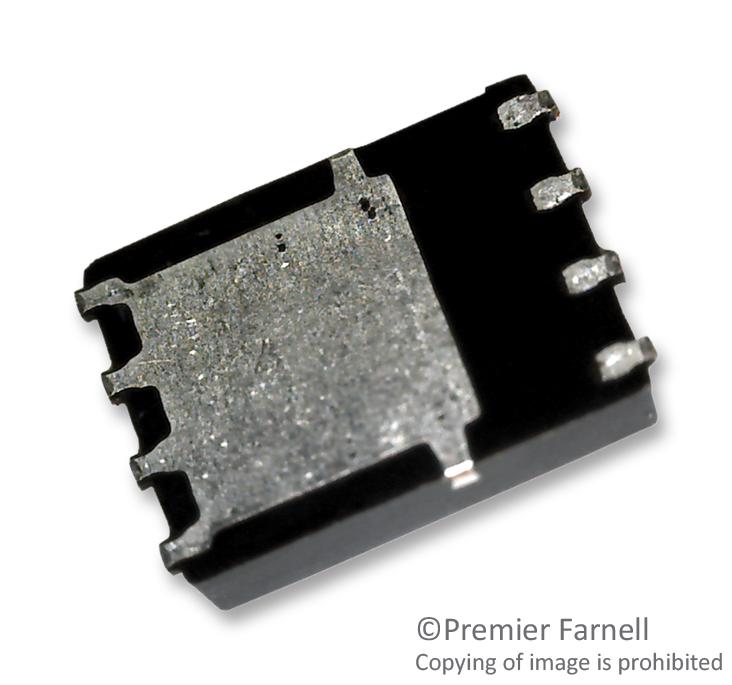

Buy the Diodes Series PowerDI3333-8 DXTP03060CFG
Purchase the Diodes PowerDI3333-8 DXTP03060CFG online and experience exceptional switching performance for high-temperature, high-current environments. This durable, lead-free device features a compact, thermally efficient package, rated for up to 60V and -5.5A continuous current, making it ideal for motor driving, line switching, and high-side switching applications. Its robust design ensures reliability, low saturation voltage below 90mV, and compliance with environmental standards. Order now to enhance your high-density, demanding power management systems with this trusted, green solution.
Get Diodes PowerDI3333-8 DXTP03060CFG today—built for high voltage switching and reliable performance in demanding applications.
Frequently Asked Questions
Where can I buy DIODES INC. DXTP03060CFG7?
You can click on the BUY or RFQ button to purchase DXTP03060CFG7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part DXTP03060CFG7?
You can download the DXTP03060CFG7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of DXTP03060CFG7?
DIODES INC.
