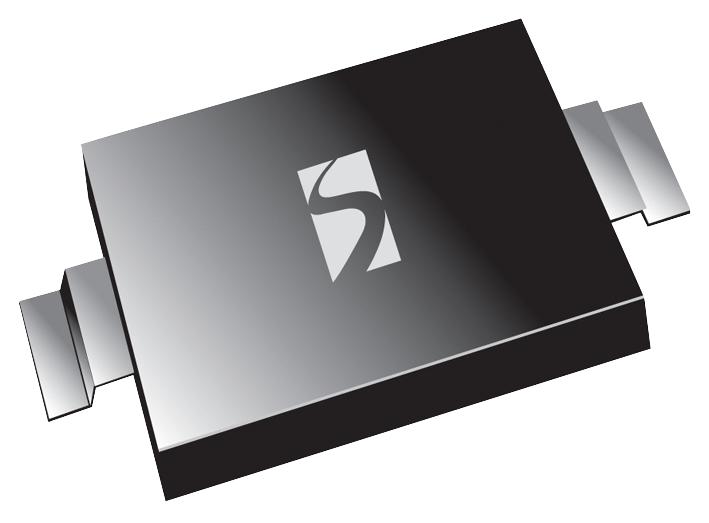

DIODES INC. SD103CWS7F Surface Mount Schottky Diode
The SD103CWS-7-F is an ultra-small surface-mount Schottky Barrier Diode housed in a molded plastic case. It features matte tin (lead-free) plated alloy 42 lead frame terminals and a guard ring for transient protection. Designed to meet the stringent requirements of automotive applications, this diode is ideal for use as a polarity protection diode, recirculating diode, or switching diode. Key characteristics include low forward voltage drop, negligible reverse recovery time, low reverse capacitance, and full lead-free composition. It is halogen and antimony-free, making it a green device, and is qualified to AEC-Q101 standards for high reliability. The diode is also PPAP capable, with moisture sensitivity level 1 per J-STD-020, and a UL94V-0 flammability rating. It is primarily used in automotive applications. Note: Due to high market demand, lead times may be extended, and delivery dates may fluctuate. The product is not eligible for discounts.
DIODES INC. SD103CWS7F Surface Mount Schottky Diode Specifications:
- Peak Repetitive Reverse Voltage VRRM: 20 V
- Working Peak Reverse Voltage VRWM: 20 V
- DC Blocking Voltage Vr: 14 V
- RMS Reverse Voltage Va(RMS): 14 V
- Forward Continuous Current: 350 mA
- Non-Repetitive Peak Forward Surge Current: 1.5 A
- Power Dissipation: 200 mW
- Thermal Resistance, Junction to Ambient Air: 625 °C/W
- Operating and Storage Temperature Range: -65 to +125 °C
- Reverse Breakdown Voltage: 20 V
- Forward Voltage Drop: 0.60 V at 200 mA
- Peak Reverse Current: 5.0 μA at 20 V
- Total Capacitance: 28 pF at 0 V, 1.0 MHz
- Reverse Recovery Time: 10 μs
- Case: SOD-323
- Material: Molded plastic, UL V-0 rated
- Lead Finish: Matte tin, lead-free
- Moisture Sensitivity: Level 1
- Compliance: RoHS, EU Directive 2002/95/EC and 2011/65/EU
- Package Dimensions (mm): A: 0.25-0.35, B: 1.20-1.40, Cc: 2.30-2.70, H: 1.60-1.80, J: 0.00-0.10, K: 1.0-1.4, L: 0.20-0.40, M: 0.10-0.15
- Case Outline: SOD-323
