DIODES INC. SDM1U100S1F7 Schottky Rectifier
The SDM1U100S1F is a high-efficiency, low forward voltage 1A Schottky barrier rectifier in SOD123F package. Designed for general rectification, it features guard ring die construction for transient protection, lead-free and RoHS compliant, halogen and antimony free. Suitable for use in power supplies and automotive electronics, it offers low power loss, high surge current capacity, and excellent thermal performance with a maximum working voltage of 100V and a non-repetitive surge current of 50A. Its compact plastic case and matte tin finish enhance reliability and ease of soldering in modern electronic circuits.
DIODES INC. SDM1U100S1F7 Schottky Rectifier Specifications:
- Maximum Repetitive Reverse Voltage VrrM: 100 V
- Working Peak Reverse Voltage Vawm: 100 V
- DC Blocking Voltage Vam: 100 V
- Average Rectified Output Current: 1 A
- Non-Repetitive Peak Forward Surge Current: 50 A
- Peak Repetitive Reverse Voltage: 100 V
- Forward Voltage Drop: 0.58 to 0.67 V at 1A, 25°C
- Leakage Current: 500 pA at 100 V, 25°C
- Capacitance: 42 pF at 4 V, 1 MHz
- Thermal Resistance Junction to Case: 50 K/W
- Thermal Resistance Junction to Ambient: 120 K/W
- Operating Temperature Range: -55°C to +175°C
- Case Material: Molded Plastic
- Dimensions: 1.70mm x 1.35mm x 0.80mm typical (LxWxH)
- Lead Finish: Matte Tin over Copper
- Flammability Rating: UL 94V-0

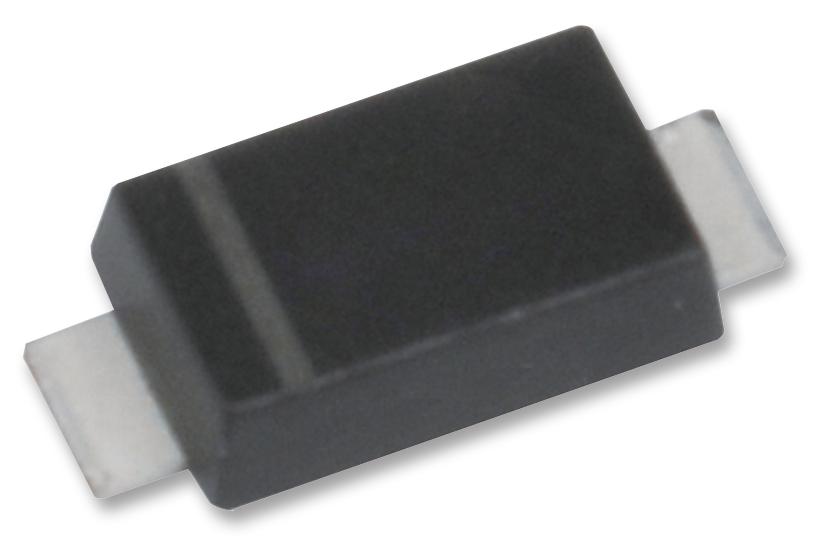

Buy the Diodes Series SDM1U100S1F Schottky Barrier Rectifier: SDM1U100S1F
Purchase the Diodes Series SDM1U100S1F Schottky barrier rectifier online now to ensure high efficiency, low power loss, and excellent surge capacity for your power electronics. This compact, RoHS-compliant device offers a maximum reverse voltage of 100V, a surge current of 50A, and a low forward voltage drop of 0.58V at 1A. Perfect for power supplies, automotive electronics, and general rectification needs, it features a molded plastic case with a matte tin finish, making installation straightforward and reliable in advanced electronic systems.
Order your Diodes Series SDM1U100S1F high-current Schottky rectifier today and enhance your power circuits with reliable, low-voltage-drop performance.
