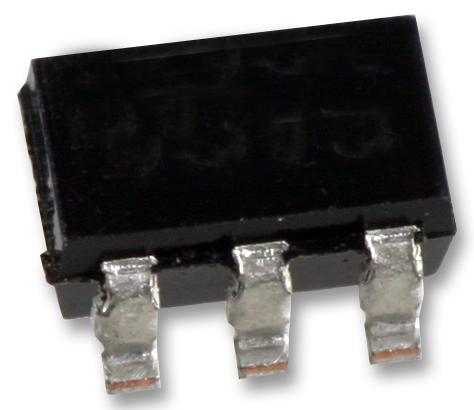

DIODES INC. ZXGD3009E6TA Gate Driver
ZXGD3009E6 is a high-speed, 40V single-gate driver designed for efficient MOSFET switching in power supply applications. It provides up to 1A peak source/sink current, enabling rapid charging and discharging of gate capacitances. With a built-in wide supply voltage range, low quiescent current, and robust features such as a rugged emitter-follower stage, it minimizes power losses, EMI, and cross-conduction. Qualified to high-reliability standards, it is ideal for power converters, motor control, inverters, and amplifier stages, offering enhanced switching performance and system reliability.
DIODES INC. ZXGD3009E6TA Gate Driver Specifications:
- Supply Voltage (Vcc): 40 V
- Output Current (Peak Source/Sink): 1A
- Input Voltage Range: 0-40 V
- Output Voltage: Voo - 0.8 V (High), Vee + 0.2 V (Low)
- Power Dissipation: 14 W
- Thermal Resistance Junction to Ambient: 113°C/W
- Operating Temperature Range: -55°C to +150°C
- Peak Pulsed Current: 2 A
- Thermal Resistance Junction to Lead: 105°C/W
- ESD ratings: 4000 V (HBM), compatible with JEDEC standards
- Package: SOT26, Molded Plastic, RoHS compliant
- Flammability Rating: UL 94V-0
- Electrical characteristics include output voltage, supply breakdown voltage, and current ratings at +25°C
- Mounting: Surface-mount with matte tin plated terminals
Buy the Diodes ZXGD3009E6 – Reliable Gate Driver for Industrial Applications
Purchase the Diodes ZXGD3009E6 online today to enhance your power conversion projects with this high-speed, high-current gate driver. Its robust design ensures efficient MOSFET switching, reducing power losses, EMI, and cross-conduction. Ideal for power supplies, motor controls, and inverter systems, this lead-free, RoHS-compliant device offers reliable operation across broad temperature ranges. With easy PCB integration, low quiescent current, and high thermal capacity, it guarantees long-term system stability and performance. Order now to improve your electronic system’s efficiency and dependability.
Buy Diodes ZXGD3009E6 now and experience unmatched reliability and performance in power switching and motor control systems.
Frequently Asked Questions
Where can I buy DIODES INC. ZXGD3009E6TA?
You can click on the BUY or RFQ button to purchase ZXGD3009E6TA from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part ZXGD3009E6TA?
You can download the ZXGD3009E6TA datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of ZXGD3009E6TA?
DIODES INC.
