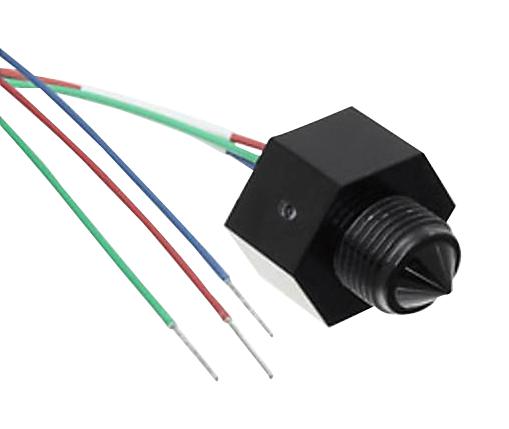

DURAKOOL D101000 Liquid Level Sensor
The D101 Liquid Level Sensor series offers compact, low-cost, and low-power detection for a wide range of liquids including oil and water-based substances. Featuring M12 x 1 threading, it is suitable for commercial and industrial applications, with a high-accuracy digital output that is high in air. Made from durable polysulfone housing, it supports operating temperatures from -25°C to +80°C and storage temperatures from -30°C to +85°C. Compatible with supply voltages from 4.5 to 15.4 VDC, it can withstand pressures up to 7 bar. Its PTFE wires and quick mounting make installation straightforward in various environments.
DURAKOOL D101000 Liquid Level Sensor Specifications:
- Housing Material: Polysulfone
- Thread: M12 x 1
- Output Type: Push / Pull - Digital High in Air
- Output Current: Up to 100mA
- Supply Voltage: 4.5-15.4 VDC
- Supply Current: Max 2.5mA
- Pressure: Up to 7 bar / 101 psi
- Temperature Operating Range: -25°C to +80°C
- Temperature Storage Range: -30°C to +85°C
- Housing / Mounting: M12 (Hex nut and washer supplied)
- Sensor Termination: 24AWG, 250mm PTFE wires, 8mm tinned
- Tightening Torque: 1.5 Nm / 13.26 in-lbs
- Sensor Thread: M12 x 1
- Detection: Oil or water-based liquids
- Brand: American Electronic Components Inc.
- Dimensions: Drawing dimensions in millimetres
Buy the American Series D101 Liquid Level Sensor: D101000
Experience reliable liquid detection with the American Series D101 liquid level sensor, featuring compact design, low power consumption, and versatile application capabilities. Its M12 x 1 threading ensures easy installation, while the Polysulfone housing provides excellent chemical resistance. Suitable for high or standard temperature environments, it supports up to 7 bar pressure, making it ideal for industrial processes involving oil or water-based liquids. Purchase online now to upgrade your liquid monitoring systems with this durable, high-accuracy sensor.
Order your American Series D101 liquid level sensor today and ensure reliable liquid detection for your industrial systems with precision and durability.
