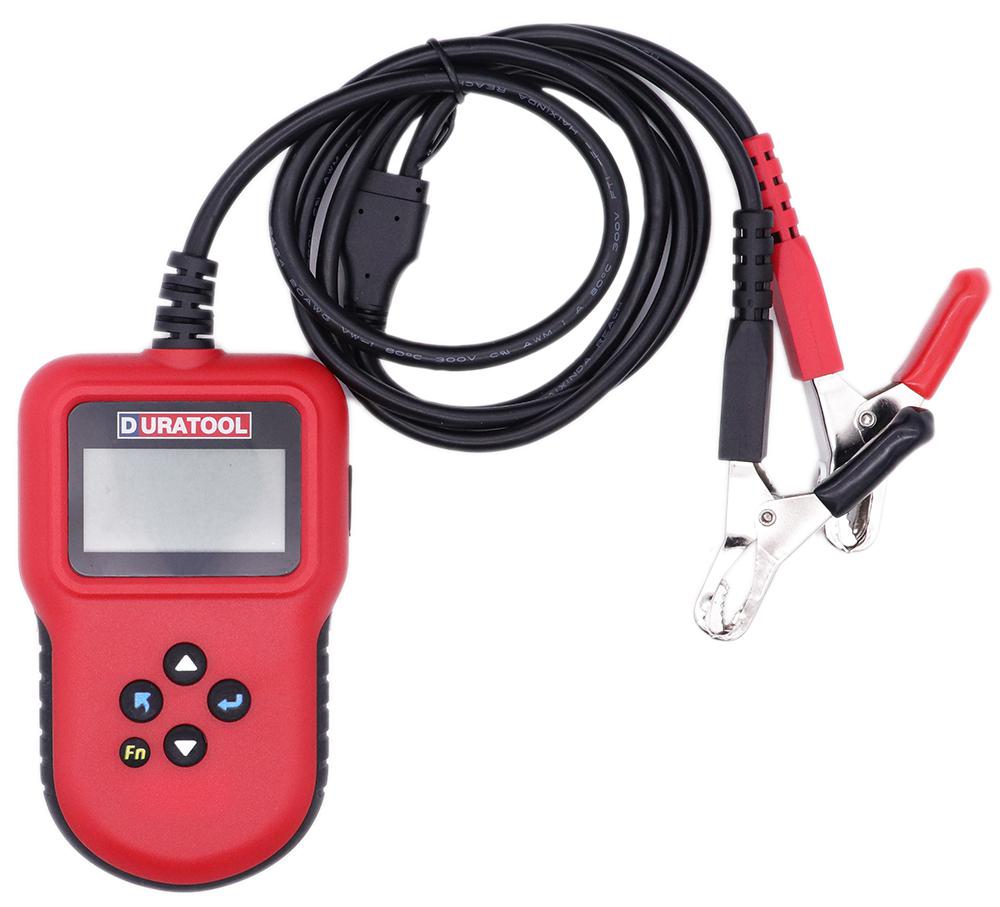

DURATOOL D03406 Battery Tester
This 12V battery tester accurately evaluates the condition of lead acid and lithium batteries used in vehicles, motorcycles, and scooters. Utilizing conductance method, it offers quick, safe, and repeatable results without discharging the battery. It tests a wide range of batteries including sealed, flooded, AGM, GEL, and Lithium-ion, based on major standards like JIS, SAE, EN, DIN, and IEC. Features include vehicle cranking and charging system analysis, stored test results, and a large LCD display. Compact and maintenance-free, it’s ideal for automotive and power sports applications, ensuring reliable diagnostics and battery health assessment.
DURATOOL D03406 Battery Tester Specifications:
- System voltage: 12 Volts, Input voltage range: 9V to 15V
- Testing Range: Lithium-ion - 20-1000 Ah (CCA/BCI/CA/MCA), Lead acid - 20-2000 Ah (CCA/BCI/CA/MCA)
- Supports standards: JIS, DIN, IEC, EN, SAE, GB
- Battery types: Sealed, flooded, AGM, GEL, Lithium-ion, maintenance-free
- Power requirements: No internal batteries, powered during connection
- Operating parameters: 12V, 9V-15V input, test current pulse method
- Display: Large LCD for easy reading
- Features: Cranking and charging system test, stored results, print via PC
- Compatible with scooters, motorcycles, and vehicle batteries
- Dimensions and physical features: Handheld, portable design
- Certification: CE
- Temperature Range: -10°C to +50°C
Buy the Buy DURATOO 12V Lead Acid & Lithium Battery Tester Part Number D03406 Online
Experience precise and rapid battery diagnostics with the DURATOO Battery Tester. Perfect for vehicle, scooter, and motorcycle batteries, it supports multiple standards including JIS, SAE, DIN, IEC, and EN. This versatile tool tests lead acid, AGM, GEL, and lithium-ion batteries efficiently without discharging them, providing clear results on internal resistance, capacity, cranking, and charging systems. Its easy-to-read LCD display and data storage capabilities make maintenance and troubleshooting straightforward, ensuring your batteries are always in optimal condition.
Get DURATOO D03406 today—built for accurate diagnostics, safety, and reliable battery performance testing in vehicles and power sports.
Frequently Asked Questions
Where can I buy DURATOOL D03406?
You can click on the BUY or RFQ button to purchase D03406 from an authorized DURATOOL distributor.
How do I troubleshoot issues or seek technical support for part D03406?
You can download the D03406 datasheet or visit the DURATOOL website for support.
Who is the manufacturer of D03406?
DURATOOL
