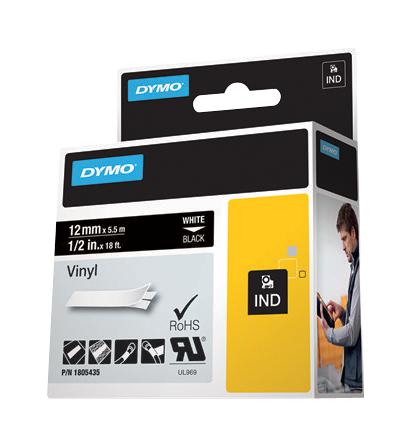

DYMO 1805435 Industrial Vinyl Tape
DYMO Industrial Vinyl Tape is a robust solution for a wide range of labeling needs. Formulated with a permanent acrylic adhesive and a topcoat specifically for thermal transfer printing, this tape provides excellent adhesion to various surfaces. It's ideal for general ID, electrical panels, asset labeling, visual workplace, pipe marking, and 5S labeling applications. The tape's halogen-free composition and ability to adhere to curved or flat surfaces make it versatile for diverse industrial environments. It is UL Recognized as a component to UL969.
DYMO 1805435 Industrial Vinyl Tape Specifications:
- Material: Vinyl (PVC)
- Adhesive: Permanent Acrylic
- Printability: Thermal Transfer Printing
- Total Thickness: 178 µm +/- 10%
- Dimensional Stability MD: <1.0% at 70°C (158°F) for 24 hrs
- Dimensional Stability TD: <1.0% at 70°C (158°F) for 24 hrs
- Tack: 800 gm/cm²
- UL Recognition: UL969 (UL File Number MH48389)
- Adhesion to ABS: 24 N/25mm
- Adhesion to Stainless Steel: 29 N/25mm
- Adhesion to Galvanized Steel: 29 N/25mm
- Adhesion to PVC: 27 N/25mm
- Adhesion to Polycarbonate: 28 N/25mm
- Adhesion to Anodized Aluminum: 41 N/25mm
- Adhesion to Polystyrene: 36 N/25mm
- Adhesion to HDPE: 17 N/25mm
- Adhesion to Glass: 36 N/25mm
- Adhesion to Polypropylene: 34 N/25mm
- Adhesion to Polyethylene Terephthalate: 35 N/25mm
- Adhesion to Nylon - Polyamide: 38 N/25mm
- Adhesion to Polyurethane paint on Aluminum: 39 N/25mm
- Adhesion to Polyester paint on Aluminum: 40 N/25mm
- Adhesion to PE - cross linked: 12 N/25mm
- Adhesion to EPMD rubber: 38 N/25mm
- Adhesion to Bare aluminum: 39 N/25mm
- Adhesion to LDPE: 11 N/25mm
- Adhesion to Polyimide Kapton: 36 N/25mm
- Adhesion to Phenolic: 37 N/25mm
- Chemical Resistance (Fuel, Gasoline, Isopropyl alcohol, Ethanol, Water): No visible effect
- Chemical Resistance (Skydrol): Slight print removal
- Chemical Resistance (Ethyl acetate, Xylene): Printing gone
- Abrasion Resistance (Pencil eraser): No visible effect
- Abrasion Resistance (Polystyrene pin): No visible effect
- UV Light Stability: No visible effect on text and background, slight shrinkage of material
- Humidity Resistance: No visible effect on text or background, slight shrinkage of material
- Shelf Life: Two years (21°C, 50% RH)
