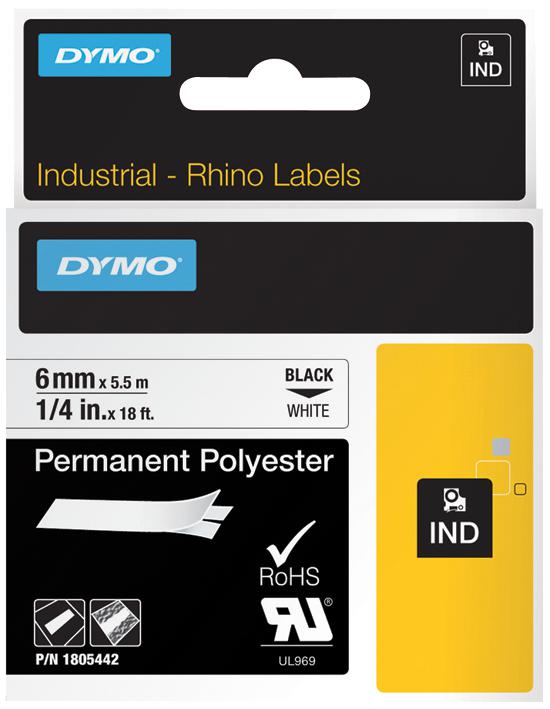

DYMO 1805442 Polyester Thermal Transfer Tape
The DYMO 1805442 Industrial Polyester Tape is a versatile solution for thermal transfer printing applications. Formulated with a permanent acrylic adhesive, this tape provides strong adhesion to a wide range of surfaces, including metal, plastic, and glass. It's ideal for general ID, inventory, and warehouse marking, as well as marking connectivity panels. The tape is halogen-free and UL Recognized, ensuring compliance with industry standards. Its dimensional stability and resistance to various chemicals and UV light make it suitable for both indoor and outdoor use.
DYMO 1805442 Polyester Thermal Transfer Tape Specifications:
- Total Thickness: 131 µm +/- 10%
- Dimensional Stability: No shrinkage observed on an aluminum panel at 70°C (158°F) for 24 hrs.
- Adhesion to Surfaces (N/25mm): {'ABS': '14', 'Stainless steel': '21', 'Galvanized steel': '17', 'PVC': '19', 'Polycarbonate': '20', 'Anodized Aluminum': '25', 'Polystyrene': '26', 'HDPE': '18', 'Glass': '25', 'Polypropylene': '25', 'Polyethylene Terephthalate': '25', 'Nylon - polyamide': '24', 'Polyurethanepaint on Aluminum': '25', 'Polyester paint on Aluminum': '26', 'PE - cross linked': '23', 'EPMD rubber': '17', 'Bare aluminum': '25', 'LDPE': '24', 'Polyimide Kapton': '16', 'Phenolic': '21'}
- Tack (ASTM D 2979): 980 gm/cm²
- Max Temperature (°C): 150
- Min Temperature (°C): -40
- Fuel Resistance: Slight print removal (30 rubs)
- Gasoline Resistance: No visible effect (30 rubs)
- Isopropyl Alcohol Resistance: No visible effect (30 rubs)
- Ethanol Resistance: Slight print removal (30 rubs)
- Water Resistance: No visible effect (30 rubs)
- Skydrol Resistance: Moderate print removal (30 rubs)
- Ethyl Acetate Resistance: Printing gone (5 rubs)
- Papanicolau og. 6 Resistance: No visible effect (30 rubs)
- Hematoxylin Resistance: No visible effect (30 rubs)
- Xylene Resistance: Printing gone (30 rubs)
- Pencil Eraser Resistance: No visible effect (30 rubs)
- Polystyrene Pin Resistance: No visible effect (30 rubs)
- Sandpaper Resistance: Moderate print removal (30 rubs)
- UV Light Stability: No visible effect on text or background after 30 days
- Humidity Resistance: No visible effect on text or background after 30 days at 45°C (113°F), 85% Relative Humidity
- Shelf life: Two years stored at 21°C (69.8°F) and 50% Relative Humidity
Buy the 1805442 DYMO Polyester Thermal Transfer Tape | myMectronic
Purchase the DYMO 1805442 Industrial Polyester Tape securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy DYMO 1805442?
You can click on the BUY or RFQ button to purchase 1805442 from an authorized DYMO distributor.
How do I troubleshoot issues or seek technical support for part 1805442?
You can download the 1805442 datasheet or visit the DYMO website for support.
Who is the manufacturer of 1805442?
DYMO
