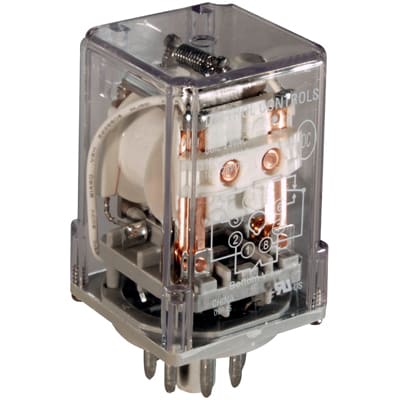

DELTROL CONTROLS 1053PDT10A120VAC General Purpose Relay
The Deltrol Controls 105 Series is a general-purpose plug-in relay designed for a wide range of applications. It features a class F coil insulation system for enhanced temperature resistance and a unique armature stop to maintain adjustment. The relay's gold-flashed contacts provide reliable performance, and it is commonly used as a replacement for existing equipment. Available in various configurations and coil voltages, the 105 Series offers versatility and ease of integration into diverse electrical systems. It is UL Recognized and CSA Certified, ensuring compliance with industry standards.
DELTROL CONTROLS 1053PDT10A120VAC General Purpose Relay Specifications:
- Configuration: Thru 3PDT
- Contact Materials (5 Amp): Moveable Fine Silver, Stationary Fine Silver
- Contact Materials (10 Amp): Moveable Silver Cadmium Oxide, Stationary Fine Silver
- Contact Finish: Gold Flash (Standard), Gold Diffusion (Special Order)
- Coil Insulation System: Class F (155°C)
- Coil Material: Rynite® PET
- Typical Applications: Common replacement relay for many types of existing equipment
- Expected Life (Electrical): 100,000 Operations (Min.)
- Mechanical Life: 10,000,000 Operations
- Dielectric Strength: 800 VRMS (Between Contacts), 1500 VRMS (Between Other Elements)
- Agency Approvals: UL Recognized (E37066), CSA Certified (LR20690)
- Operating Ambient Temperature: -45° to 55°C (AC), -45° to 70°C (DC)
- Coil Temperature Rise: 45°C Approx. (AC at 60Hz), 25°C Approx. (DC)
- Terminal Type: 8 or 11 Pin-Plug
- Cover Material: Polycarbonate (Flammability Rating 94V2)
- Weight: Approx. 3.0 oz. (85 g.)
