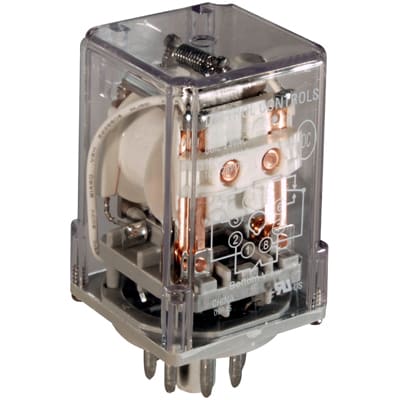

DELTROL CONTROLS 105DPDT5A120VAC General Purpose Relay
The Deltrol Controls 105 Series is a general-purpose plug-in relay designed for a wide range of applications. It features a class F coil insulation system for enhanced temperature resistance and a unique armature stop to maintain adjustment. The relay is commonly used as a replacement for existing equipment and offers reliable performance in various industrial settings. It is available in different configurations and coil voltages to suit diverse control requirements. Gold flash is standard on all contacts, with gold diffused options available upon special order.
DELTROL CONTROLS 105DPDT5A120VAC General Purpose Relay Specifications:
- Coil Insulation System: Class F for 155° C Total Temperature
- Coil Material: Rynite® PET for Environmental Protection
- Armature Stop: Maintains Adjustment
- Configuration: Thru 3PDT
- Contact Materials (5 Amp): Moveable Fine Silver, Stationary Fine Silver
- Contact Materials (10 Amp): Moveable Silver Cadmium Oxide, Stationary Fine Silver
- Contact Finish: Gold Flash (Standard), Gold Diffusion (Special Order)
- UL Ratings (5 Amp): 1/8 HP or 5 Amp at 120 VAC, 1/4 HP or 5 Amp at 277 VAC, 5 Amp at 28 VDC
- UL Ratings (10 Amp): 1/3 HP or 10 Amp at 120 VAC, 1/2 HP or 10 Amp at 277 VAC, 10 Amp at 28 VDC
- Electrical Life: 100,000 Operations (Minimum)
- Mechanical Life: 10,000,000 Operations
- Dielectric Strength: 800 VRMS, 60 Hz Between Contacts; 1500 VRMS, 60 Hz Between Other Elements
- Agency Approvals: UL Recognized (File No. E37066), CSA Certified (File No. LR20690)
- DC Pull-In Current (SPDT): 11.2 mA (at 6 VDC)
- Resistance (SPDT): 1 K Ohm (at 6 VDC)
- Nominal Coil Power (SPDT): 125 mW
- AC Coil Voltage Range: 6 VAC to 240 VAC
- DC Coil Voltage Range: 6 VDC to 110 VDC
- Operating Ambient Temperature: -45°C to 55°C (AC), -45°C to 70°C (DC)
- Coil Temperature Rise: 45°C Approx. (AC at 60 Hz), 25°C Approx. (DC)
- Terminal Type: 8 or 11 Pin-Plug
- Cover Material: Polycarbonate (Flammability Rating 94V2)
- Weight: Approx. 3.0 oz. (85 g.)
