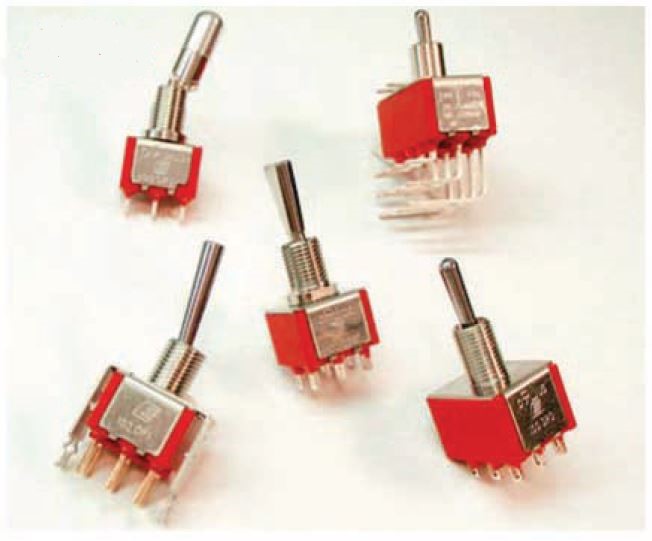

E-SWITCH 100DP1T2B1M6QEH Miniature Toggle Switch
The E-SWITCH Series 100DP1T2B1M6QEH is a miniature toggle switch designed for a wide range of applications requiring a compact and reliable switching solution. It boasts a robust construction with a diallyl phthalate (DAP) case, chrome-plated brass toggle handle, and options for brass or steel switch support. Available with various actuator and bushing options, this switch provides flexibility in design and integration. Common applications include telecommunications equipment, networking devices, instrumentation, and medical devices. The switch offers a life expectancy of 40,000 make-and-break cycles and is designed to operate within a temperature range of -30°C to 85°C.
E-SWITCH 100DP1T2B1M6QEH Miniature Toggle Switch Specifications:
- Contact Rating: See contact material options
- Life Expectancy: 40,000 make-and-break cycles
- Contact Resistance: 10 0 m AQ (typical)
- Insulation Resistance: 1,000 MQ min.
- Dielectric Strength: 1,000 V RMS @ sea level
- Operating Temperature: -30° C to 85° C
- Case Material: Diallyl Phthalate (DAP)
- Toggle Handle Material: Brass, chrome plated
- Switch Support Material: Brass or steel, tin plated
- Bushing Material: Brass, nickel plated
Buy the 100DP1T2B1M6QEH E-SWITCH Miniature Toggle Switch | myMectronic
Purchase the E-SWITCH 100DP1T2B1M6QEH Miniature Toggle Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy E-SWITCH 100DP1T2B1M6QEH?
You can click on the BUY or RFQ button to purchase 100DP1T2B1M6QEH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 100DP1T2B1M6QEH?
You can download the 100DP1T2B1M6QEH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 100DP1T2B1M6QEH?
E-SWITCH
