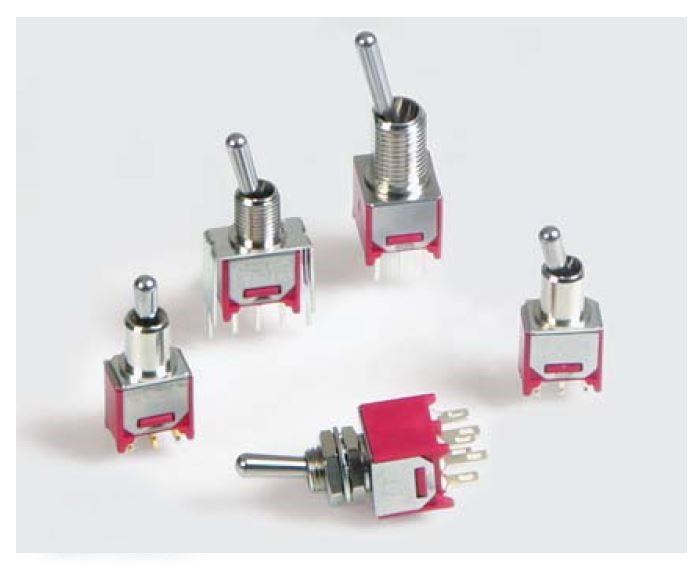

E-SWITCH 200MSP1T1B1M2REH Sub Miniature Toggle Switch
The E-SWITCH 200MSP1T1B1M2REH is a sub miniature toggle switch offering a compact and versatile solution for switching applications. Constructed with durable materials like diallyl phthalate (DAP) or glass-filled nylon, and featuring brass components with chrome or nickel plating, this switch provides reliable performance in demanding environments. It is commonly used in telecommunications, instrumentation, networking, and medical equipment where space is limited and reliable switching is essential. The switch's design allows for multiple actuator and bushing options, providing flexibility in integration and customization.
E-SWITCH 200MSP1T1B1M2REH Sub Miniature Toggle Switch Specifications:
- Contact Rating: Dependent upon contact material
- Life Expectancy: 30,000 make-and-break cycles at full load
- Contact Resistance: 20 mΩ max. typical initial @ 2-4 VDC
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 1,000 V RMS @ sea level
- Operating Temperature: -30° C to 85° C
- Case Material: Diallyl Phthalate (DAP) or glass filled nylon (UL94-V0)
- Toggle Handle Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Switch Support Material: Brass, tin plated
- Contacts/Terminals Material: Silver or gold plated copper alloy
- Fixed Terminal (Q): Silver plated copper alloy
- Moving Contact (Q): Silver plated copper alloy
- Rating (Q): 3 Amps @ 120 VAC or 28 VDC; 1 Amp @ 250 VAC
- Fixed Terminal (R): Copper alloy with gold plate over nickel plate
- Moving Contact (R): Copper alloy with gold plate over nickel plate
- Rating (R): 0.4 VA max. @ 20 VAC or DC max.
Buy the 200MSP1T1B1M2REH E-SWITCH Sub Miniature Toggle Switch | myMectronic
Purchase the E-SWITCH 200MSP1T1B1M2REH Sub Miniature Toggle Switch securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy E-SWITCH 200MSP1T1B1M2REH?
You can click on the BUY or RFQ button to purchase 200MSP1T1B1M2REH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 200MSP1T1B1M2REH?
You can download the 200MSP1T1B1M2REH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 200MSP1T1B1M2REH?
E-SWITCH
