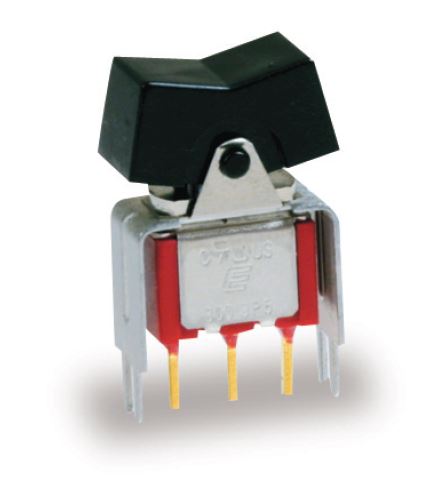

E-SWITCH 300SP1J2BLKVS4QE Miniature Switch
Series 300 miniature rocker and paddle switches provide reliable switching in electronic applications with compact size and panel mount capability. Features include multiple toggle options, up to 4 poles, various termination types, and snap-in panel mounts. Crafted from durable materials such as nylon, brass, stainless steel, and copper alloy with silver or gold plated contacts, these switches operate over a temperature range of -30°C to 85°C. They support a contact rating of up to 5 Amps, ensuring long-lasting performance in telecommunications, instrumentation, networking, and computer peripheral systems.
E-SWITCH 300SP1J2BLKVS4QE Miniature Switch Specifications:
- Contact Rating: 5 Amps resistive load at 120VAC or 28VDC; 2 Amps at 250VAC
- Contact Resistance: 10 mΩ max. initial @ 2-4 VDC, 100 mA for silver and gold contacts
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 1,000 V RMS @ sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - Diallyl Phthalate; Rockers - Nylon; Contacts - Silver or gold plated copper alloys; Housing - Stainless steel, brass, steel
- Physical Dimensions: Diameter approximately 94 DIA mm, options for panel thickness and actuator colors
- Switch Types: Single Pole, Double Pole, SPDT, DPDT, with snap-in front mount options
Buy the Buy E-Switch Series 300 Miniature Switch Part Number 300SP1J2BLKVS4QE Online
Purchase the E-Switch Series 300 miniature switch online today for reliable performance in electronic control panels. With multiple pole options, durable nylon and metal construction, and easy snap-in mounting, this switch is ideal for telecommunications, instrumentation, and networking applications. Its high-quality contacts support 5 Amps resistive load, ensuring longevity and dependable operation. Whether for retrofit or new designs, order online now to experience seamless procurement of this compact, versatile switch designed to meet demanding electronic control needs efficiently.
Get E-Switch Series 300 miniature switch today—designed for precise control, durability, and easy panel mounting in electronic systems.
Frequently Asked Questions
Where can I buy E-SWITCH 300SP1J2BLKVS4QE?
You can click on the BUY or RFQ button to purchase 300SP1J2BLKVS4QE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 300SP1J2BLKVS4QE?
You can download the 300SP1J2BLKVS4QE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 300SP1J2BLKVS4QE?
E-SWITCH
