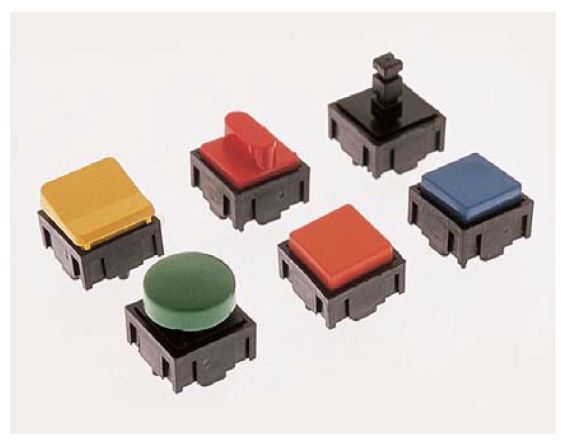

E-SWITCH 32001E11GRN Pushbutton Switch
Series 320 pushbutton switch with a green cap, designed for panel mounting in control systems. Ideal for applications requiring reliable user interface controls, with excellent tactile feedback and high reliability dome technology. Features gold over stainless steel contact, silver-plated copper alloy terminals, and multiple color options for customization. Operating within -20°C to 70°C, it offers a travel of 6mm, with a contact rating of 25mA at 50 VDC, making it suitable for low-power switching in telecommunication, networking, and computer systems. Durability exceeds 1,000,000 cycles.
E-SWITCH 32001E11GRN Pushbutton Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: 1,000MQ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing: Nylon 4/6
- Contact Material: Gold over stainless steel
- Terminals/Contacts: Silver plated copper alloy
- Cap Color Options: Black, Grey, Yellow, Blue, Green, White, Red
- Suitable for applications in telecommunication, networking, computers, servers, audio, instrumentation, low power on/off systems, external hard drives, and modems.
Buy the Buy Brand Name Series 320 Pushbutton Switch Part Number 32001E11GRN Online
Order the Brand Name Series 320 pushbutton switch with a green cap online today. This durable switch is designed for panel mounting in control systems, offering excellent tactile feedback and high reliability. It features gold over stainless steel contacts, silver-plated copper alloy terminals, and a travel of 6mm, suitable for low-power applications such as telecommunication, networking, and instrumentation. With a life expectancy of over 1 million cycles, it provides long-lasting performance in demanding environments.
Get Brand Name 32001E11GRN today—built for precision, high reliability, and long-lasting durability in control panel applications.
Frequently Asked Questions
Where can I buy E-SWITCH 32001E11GRN?
You can click on the BUY or RFQ button to purchase 32001E11GRN from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32001E11GRN?
You can download the 32001E11GRN datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32001E11GRN?
E-SWITCH
