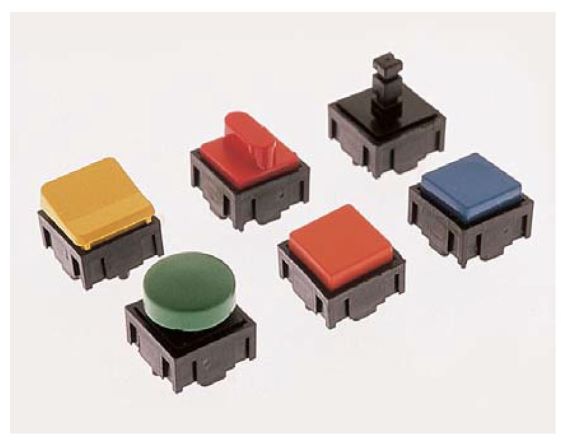

E-SWITCH 32001E11ORG Pushbutton Switch
Series 320 pushbutton switch with cap. This high-quality, reliable switch is designed for electronic and industrial applications, featuring a durable cap for easy operation. The switch has a contact rating of 25mA at 50 VDC, with a life expectancy of 1 million cycles. It offers excellent tactile feedback, high reliability with gold over stainless steel contact, and silver-plated copper alloy terminals. Suitable for telecommunications, networking, computers, audio equipment, instrumentation, and low power on/off designs, it is built for durability and precise actuation.
E-SWITCH 32001E11ORG Pushbutton Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles minimum
- Contact Resistance: 50mΩ max initial @ 2-4 VDC, 100mA
- Insulation Resistance: ≥1,000MQ min
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm typical
- Housing: Nylon 4/6
- Contact Material: Gold over stainless steel
- Terminal Material: Silver plated copper alloy
- Cap Colors: Black, Grey, Yellow, Blue, Green, White, Red
- Cap Type: Finger recess available
- Switch Series: 320
Buy the aT Series 320 Pushbutton Switch: 32001E11ORG
Order the aT Series 320 pushbutton switch online today for reliable performance in electronics and industrial equipment. Featuring durable caps, excellent tactile feedback, and a high lifespan, this switch is ideal for telecommunications, networking, audio, instruments, and low power device controls. With a contact rating of 25mA at 50 VDC and a minimum life of 1 million cycles, it guarantees consistent and long-lasting operation. Perfect for demanding environments needing rugged, high-reliability switches for control panels and automation systems.
Get aT Series 320 pushbutton switch today—built for durability and precise operation in industrial applications.
