E-SWITCH 32001E11YEL pushbutton switch

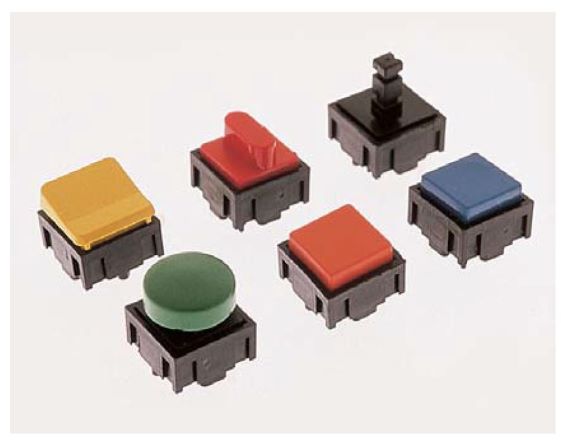

Series 320 pushbutton switch with yellow cap designed for easy operation and reliable performance in control panel applications. It features high durability, gold-over-stainless steel contact for long-lasting performance, and nylon housing for strength and resistance to environmental factors. Suitable for various control and automation settings, it provides excellent tactile feedback, with a travel distance of approximately 6mm. The switch is rated for 25mA at 50 VDC, with a minimum life expectancy of 1,000,000 cycles, ensuring dependable operation over extended use.
E-SWITCH 32001E11YEL pushbutton switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: ≥1,000MQ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing: Nylon 4/6
- Feature: Gold-over-stainless steel contact, nylon housing, high reliability dome technology
- Cap Options: Multiple colors including yellow (320.01YEL), black, grey, green, red, white, blue
- Application: Control panels, telecommunications, networking, instrumentation, external hard drives, modems
Buy the aT SSR eS e-awirce Series 320 Pushbutton Switch: 32001E11YEL
Experience the reliability and durability of the Series 320 pushbutton switch with yellow cap. Designed for control and automation applications, it features high-quality gold contacts and a nylon housing for maximum strength. Its mini travel distance ensures quick operation, and with a rated life of over 1 million cycles, it provides long-term performance. Ideal for control panels, instrumentation, networking, and more, this switch offers excellent tactile feedback and variety of color options. Purchase online for trusted quality and swift delivery.
Get aT SSR eS e-awirce Series 320 pushbutton switch with yellow cap today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy E-SWITCH 32001E11YEL?
You can click on the BUY or RFQ button to purchase 32001E11YEL from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32001E11YEL?
You can download the 32001E11YEL datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32001E11YEL?
E-SWITCH
