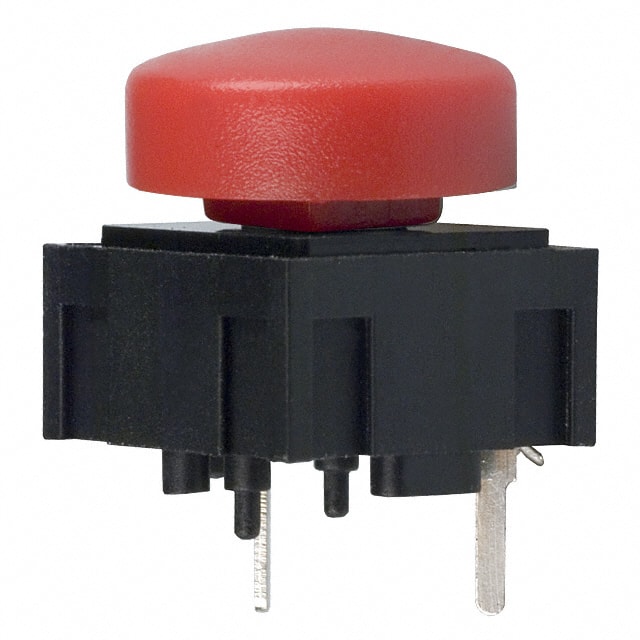

E-SWITCH 32002E1108RED Tact Switch
The Series 320 pushbutton switch with an included cap offers reliable, durable operation suitable for control panels and electronic devices. It features high insulative quality, quick actuation, and multiple color options for easy identification. Its design ensures excellent tactile feedback, facilitating intuitive user interaction. The switch incorporates a gold-over-stainless steel contact system for high reliability, with a contact resistance of up to 50mΩ and a contact rating of 25mA at 50 VDC. Ideal for telecommunications, networking, computing, and instrumentation markets, it is constructed from nylon housing with ABS cap cover, ensuring longevity and resistance to environmental factors.
E-SWITCH 32002E1108RED Tact Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: 1,000MQ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing material: Nylon 4/6
- Cap material: ABS
- Features & Benefits: Multiple cap and color options, high reliability dome technology, gold over stainless steel contact, silver plated copper alloy terminals, tactile feedback
- Application Markets: Telecommunications, networking, computers, audio, instrumentation, low power on/off designs, external hard drives, modems
Buy the aT Series 320 Tact Switch: 32002E1108RED
Purchase the aT Series 320 tactile switch online for high reliability and excellent tactile feedback, featuring gold-over-stainless steel contacts and a durable nylon housing. Perfect for control panels, instrumentation, and networking devices, this switch offers multiple color Cap options including Black, Grey, Yellow, Blue, Green, and White. With a contact rating of 25mA at 50 VDC and a lifespan of over a million cycles, it ensures long-lasting performance for demanding electronic applications. Easy to install and designed for convenience, order now for fast delivery.
Get aT Series 320 32002E1108RED today—built for durability and reliable control in electronic applications.
Frequently Asked Questions
Where can I buy E-SWITCH 32002E1108RED?
You can click on the BUY or RFQ button to purchase 32002E1108RED from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32002E1108RED?
You can download the 32002E1108RED datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32002E1108RED?
E-SWITCH
