E-SWITCH 32002E1108WHT Tact Switch

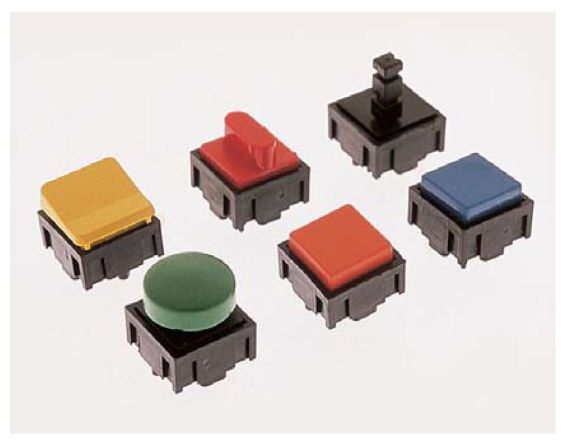

This is a Series 320 pushbutton switch accompanied by a matching cap. Designed for easy operation and reliable control, it is suitable for electronic and electrical applications requiring tactile feedback, durability, and color options like white. The switch features a contact rating of 25mA at 50 VDC, with a minimum lifespan of 1,000,000 cycles, making it ideal for demanding environments. Its nylon housing and gold-over-stainless-steel contact surface ensure high reliability, consistent performance, and excellent insulation. Available in multiple colors, this switch supports low power, high-precision control across various devices.
E-SWITCH 32002E1108WHT Tact Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50mΩ, max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: ≥1,000MQ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing Material: Nylon 4/6
- Contact Material: Gold over stainless steel
- Contact Terminals: Silver plated copper alloy
- Cap Color Options: Black, Grey, Yellow, Blue, Green, White, Red
- Switch Type: SPST, pushbutton with finger recess
- Housing Features: ABS cover/cap, multiple color options
- Application: Telecommunications, networking, computers, audio, instrumentation, low power on/off designs, external drives
Buy the aT SSR Series 320 Tact Switch: 32002E1108WHT
Purchase the aT SSR Series 320 tactile switch online today. Designed for high reliability, this switch features a durable nylon housing, gold-over-stainless-steel contacts, and multiple color options. It offers a contact rating of 25mA at 50 VDC, with an impressive lifespan of over one million cycles, making it ideal for telecommunications, networking, and computer applications. Its compact size, easy operation, and excellent tactile feedback ensure optimal performance for your electronic projects. Secure your supply now to enhance control reliability.
Get aT SSR Series 320 Tact Switch today—built for reliability, easy operation, and durable electronic control in your projects.
Frequently Asked Questions
Where can I buy E-SWITCH 32002E1108WHT?
You can click on the BUY or RFQ button to purchase 32002E1108WHT from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32002E1108WHT?
You can download the 32002E1108WHT datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32002E1108WHT?
E-SWITCH
