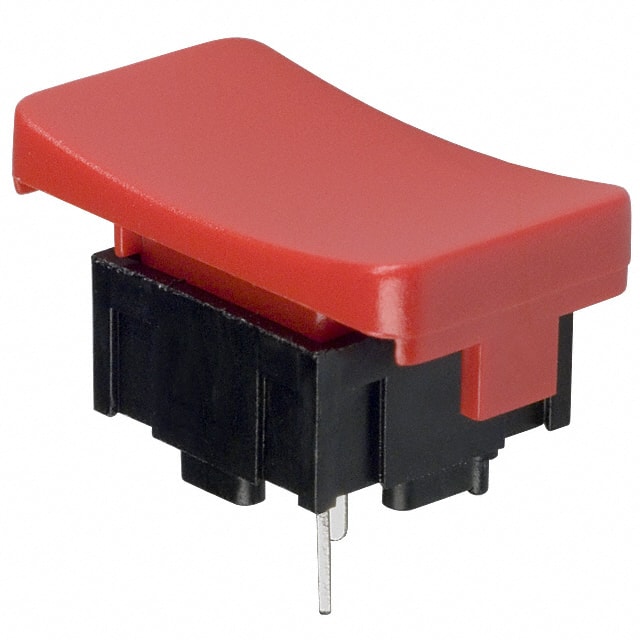

E-SWITCH 32021E11RED Pushbutton Switch
This Series 320 pushbutton switch features a red cap and is designed for reliable control and activation in electronic and electrical systems. It offers excellent tactile feedback, high durability with a life expectancy of over 1,000,000 cycles, and a contact rating of 25mA at 50 VDC. The switch operates in temperatures from -20°C to 70°C, with a travel distance of 6mm. Made from nylon housing and gold over stainless steel contact, it’s suitable for telecommunications, networking, computer servers, and instrumentation applications. Multiple color options available for customized setups.
E-SWITCH 32021E11RED Pushbutton Switch Specifications:
- Contact Rating: 25mA @ 50 VDC
- Life Expectancy: 1,000,000 cycles min.
- Contact Resistance: 50m, max. initial @ 2-4 VDC, 100mA
- Insulation Resistance: 1,000MQ min.
- Dielectric Strength: >500 VAC rms at sea level
- Actuation Force: 135 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 6mm Typ.
- Housing: Nylon 4/6
- Contact Material: Gold over stainless steel
- Housing Material: Nylon
- Mounting Type: Panel mount
- Color Options: Black, Grey, Yellow, Blue, Green, White, Red
- Switch Type: Pushbutton, momentary contact
- Application: Control panels, instrumentation, electronics
Buy the Buy Reliable Switches Series 320 Part Number 32021E11RED Online
Order the Series 320 pushbutton switch with red cap online for dependable control in electronic and electrical projects. Designed for high cycle life exceeding 1,000,000 cycles, it features a contact rating of 25mA at 50 VDC and operates across temperatures from -20°C to 70°C. The switch’s nylon housing and gold over stainless steel contact ensure longevity and reliable performance. Ideal for telecommunications, networking, instrumentation, and control panels, this switch offers multiple color options and easy assembly for a wide range of applications.
Buy Reliable Switches Series 320 Part Number 32021E11RED now and experience unmatched durability and precise tactile feedback for your control needs.
Frequently Asked Questions
Where can I buy E-SWITCH 32021E11RED?
You can click on the BUY or RFQ button to purchase 32021E11RED from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part 32021E11RED?
You can download the 32021E11RED datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of 32021E11RED?
E-SWITCH
