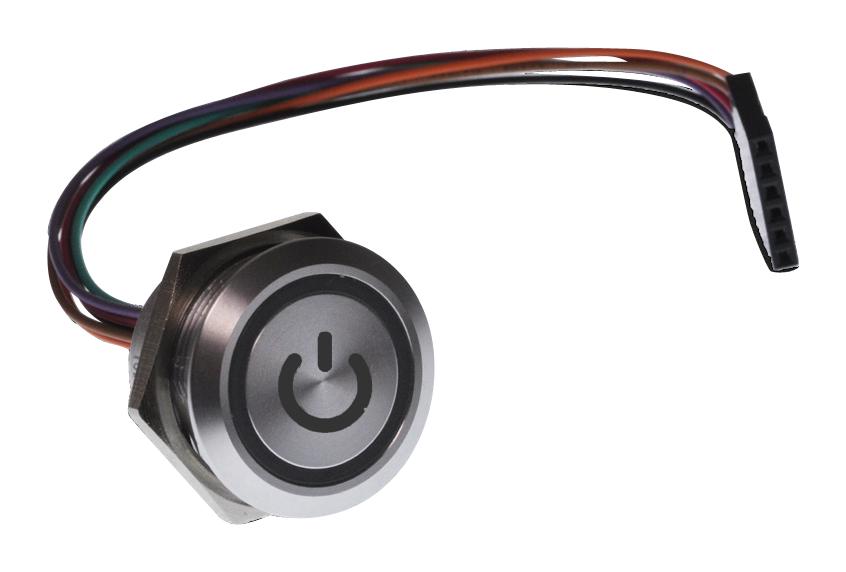

E-SWITCH CS4L2FP Vandal-Resistant Switch
The CS series anti-vandal switches feature durable 19mm and 22mm panel cutouts with options for latching or momentary functions, illuminated ring or power symbols, and RGB color schemes. Designed with capacitive touch sensing technology, these switches offer high reliability with a contact rating of 1A at 5-24VDC and a lifespan of 50 million cycles. Suitable for harsh environments, they support panel thickness up to 10mm and incorporate high-quality materials such as aluminum and anodized finishes. Ideal for industrial and control panel applications requiring vandal-resistant, customizable, and illuminated switches.
E-SWITCH CS4L2FP Vandal-Resistant Switch Specifications:
- Contact Arrangement: SPST
- Contact Rating: 1A @ 5-24VDC
- Contact Resistance: 10 Max
- Electrical Life: 50,000,000 Cycles
- Operating Temperature: -20°C to 65°C
- Storage Temperature: -25°C to 65°C
- Panel Thickness: Max. 10mm
- Mounting Nut Torque: 3.0Nm
- Series Size Options: 19mm Latching or 22mm Momentary
- Material: Aluminum, Anodized Finish
- Illumination Styles: Ring or Power Symbol, RGB Colors
- Thread Sizes: M19 x 1.0, M22 x 1.0
- Power Supply: 5-24 VDC
- Features: Capacitive touch sensor, vandal-resistant design
Buy the CS Series Vandal-Resistant Switch: CS4L2FP
Purchase your CS Series vandal-resistant switch CS4L2FP online today and enjoy durable construction, customizable illumination options, capacitive touch technology, and an impressive lifespan of 50 million cycles. Ideal for industrial environments, these switches support various panel sizes and offer high reliability. Their vandal-proof design, high-quality materials, and versatile functionalities make them the perfect choice for control panels seeking durable, reliable, and customizable switch solutions. Order now for fast delivery and professional-grade performance.
Order your CS Series anti-vandal switch CS4L2FP today and enhance your industrial control panels with reliable, illuminated, touch-sensitive technology.
Frequently Asked Questions
Where can I buy E-SWITCH CS4L2FP?
You can click on the BUY or RFQ button to purchase CS4L2FP from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part CS4L2FP?
You can download the CS4L2FP datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of CS4L2FP?
E-SWITCH
