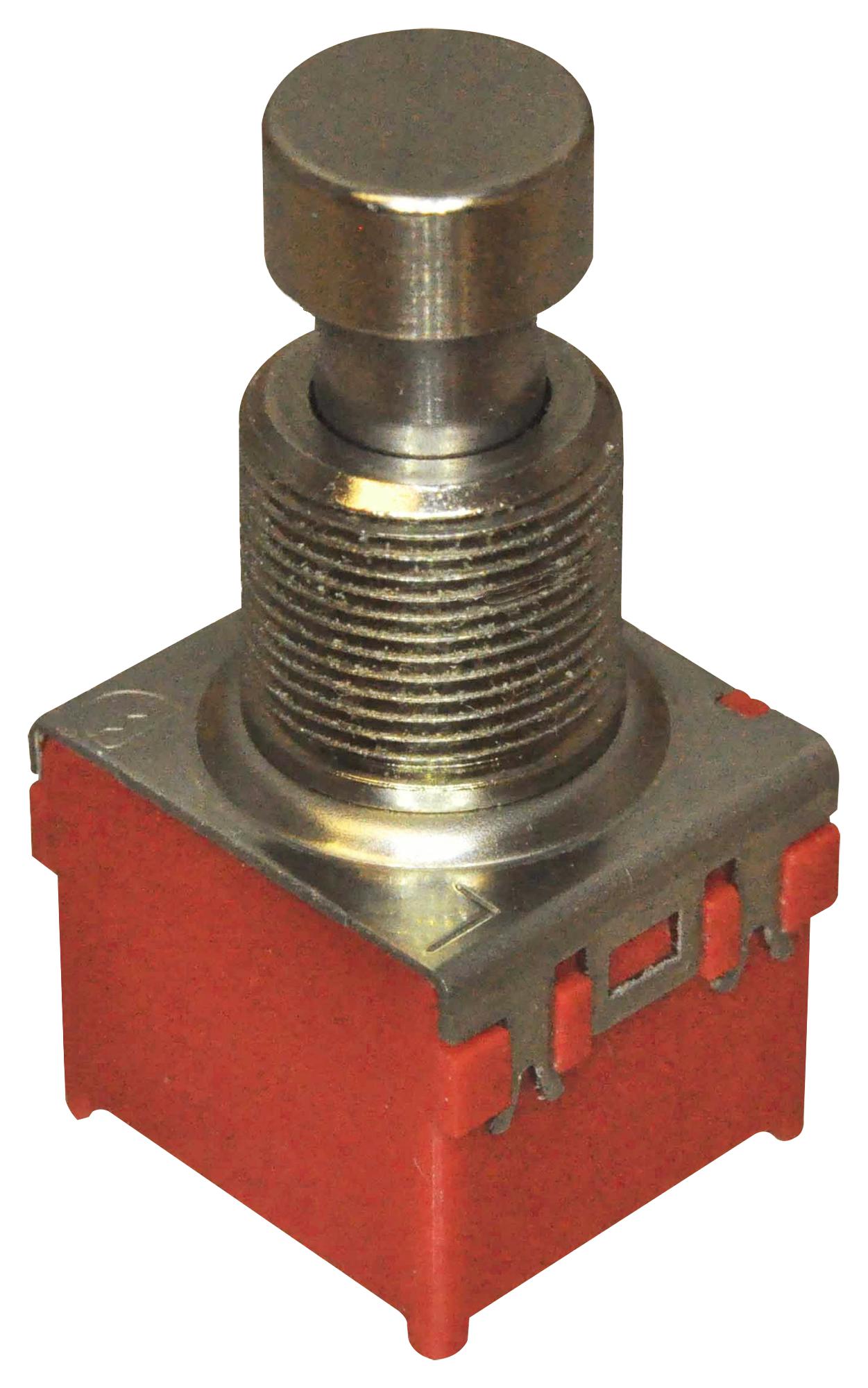

E-SWITCH FS57003PLT2B2M1QE Foot Switch
The FS57003PLT2B2M1QE from E-Switch is a 3-pole, double-throw foot switch from the FS5700 series. It features an alternate action function with an actuation force of 3000 gf. The switch is used in applications such as home appliances, floor care, flight simulation, industrial, medical, and audio-visual systems. It has a contact rating of 1A at 9V DC, an electrical life of 30,000 cycles, and a contact resistance of 50 milliohms. Insulation resistance is 100 megaohms at 500V DC with dielectric strength of 1000V RMS. Operating temperature ranges from -10°C to 70°C, supports up to 8mm panel thickness, and uses silver contacts with epoxy sealing for durability.
E-SWITCH FS57003PLT2B2M1QE Foot Switch Specifications:
- Contact Rating: 1A at 9V DC
- Electrical Life: 30,000 Cycles
- Contact Resistance: 50mΩ initial
- Insulation Resistance: 100MΩ at 500VDC
- Dielectric Strength: 1000V RMS
- Operating Temperature: -10°C to 70°C
- Panel Thickness: Max 8mm
- Actuator Diameter: 10mm
- Bushing Height: 11.5mm
- Terminals: Solder lug
- Contact Material: Silver
- Sealing: Epoxy
- Contact Arrangement: 3-pole, double-throw
- Actuation Force: 3000gf
- Full travel: 5.0mm
Buy the Buy E-Switch FS57003PLT2B2M1QE Part Number 57003PLT2B2M1QE Online
Enhance your projects with the durable FS57003PLT2B2M1QE foot switch from E-Switch. This 3-pole, double-throw switch features an alternate action with a force of 3000 gf, designed for reliable performance in industrial, medical, and consumer applications. It supports up to 8mm panel thickness and provides a contact rating of 1A at 9V DC. With a lifespan of 30,000 cycles, silver contacts, epoxy sealing, and a temperature range of -10°C to 70°C, it ensures long-lasting, dependable operation. Purchase online today for direct access to this robust switching solution.
Order your E-Switch FS57003PLT2B2M1QE series 3-pole double-throw foot switch today and ensure reliable operation for industrial, medical, or home applications.
Frequently Asked Questions
Where can I buy E-SWITCH FS57003PLT2B2M1QE?
You can click on the BUY or RFQ button to purchase FS57003PLT2B2M1QE from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part FS57003PLT2B2M1QE?
You can download the FS57003PLT2B2M1QE datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of FS57003PLT2B2M1QE?
E-SWITCH
