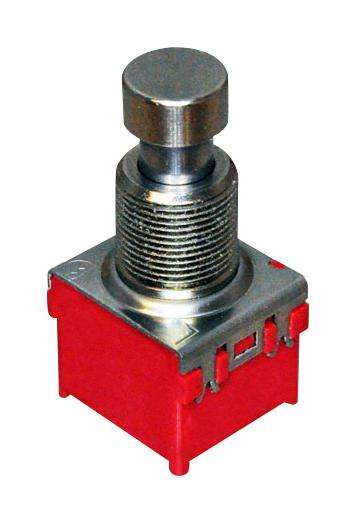

E-SWITCH FS5700DPLT2B2M1QEH Pushbutton Switch
The FS5700 series pushbutton switch offers versatile options including single, double, and triple pole configurations with momentary and alternate actions. Designed for panel and PCB mounting, it features high actuation forces suitable for anti-vandal applications and can operate within temperatures of -10°C to 70°C. The switch provides reliable contact resistance, insulation resistance, and electrical life, making it ideal for industrial and control systems requiring durable and precise switching solutions. Its robust construction ensures long-lasting performance in demanding environments.
E-SWITCH FS5700DPLT2B2M1QEH Pushbutton Switch Specifications:
- Electrical Life: 30,000 Cycles
- Contact Resistance: 50mΩ Initial
- Insulation Resistance: 100MOQ @ 500VDC
- Strength: 1000V RMS
- Operating Temperature: -10°C to 70°C
- Storage Temperature: -10°C to 70°C
- Full Travel: SP & DP: 2.7mm; 3P: 5.0mm
- Contact Arrangement: SPDT, DPDT or 3PDT
- Actuation Force: Single pole momentary: 1700gf; Single pole alternate: 1000gf; Double pole momentary: 2500gf; Double pole alternate: 1600gf; 3 pole alternate: 3000gf
- Panel Thickness: Max 8mm
- Electrical Interface: Metal bushing terminals, PCB or panel mount options
- Thread Size: M12x0.75, hole diameter options 10mm or 12mm
- Sealing Hardware: Epoxy, hardware options available
- Contact Materials: Silver-plated contacts
- Number of Poles and Action Types: Configurable in single, double, triple pole, momentary or alternate action
Buy the Buy Industrial Control Switches Part Number FS5700DPLT2B2M1QEH Online
Purchase the FS5700 series pushbutton switch easily online to integrate into your control panels or industrial equipment. Designed for durability, these switches feature multiple pole and action options, high actuation force, and reliable electrical life suitable for demanding environments. Whether you need panel-mount, PCB mount, or vandal-resistant features, buying online ensures quick delivery and easy installation. Trust these high-quality switches for long-lasting performance in industrial automation, control systems, or safety applications with confidence and convenience.
Get FS5700 series pushbutton switch today—built for precision, durability, and versatile industrial control applications.
Frequently Asked Questions
Where can I buy E-SWITCH FS5700DPLT2B2M1QEH?
You can click on the BUY or RFQ button to purchase FS5700DPLT2B2M1QEH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part FS5700DPLT2B2M1QEH?
You can download the FS5700DPLT2B2M1QEH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of FS5700DPLT2B2M1QEH?
E-SWITCH
