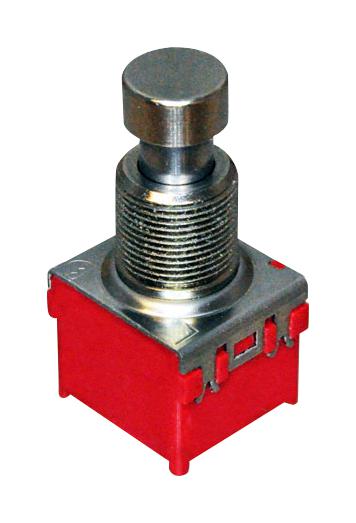

E-SWITCH FS5700SPMT2B2M1QEH Pushbutton Switch
The FS5700 series pushbutton switch offers reliable, high-force actuation with multiple contact configurations including SPDT, DPDT, and 3PDT. Designed for industrial applications, it features a sealed epoxy hardware design, with quick connectivity using solder or PCB pins, and supports panel thickness up to 8mm. With a mechanical life of 30,000 cycles and operating temperatures from 10°C to 70°C, this rugged switch is ideal for vandal-proof, detector, keylock, and navigation functions in demanding environments.
E-SWITCH FS5700SPMT2B2M1QEH Pushbutton Switch Specifications:
- Electrical Rating: 1A @ 9VDC
- Mechanical Life: 30,000 Cycles
- Contact Resistance: 50mΩ (Initial)
- Insulation Resistance: 100MOQ @ 500VDC
- Strength: 1000V RMS
- Operating Temperature: 10°C to 70°C
- Storage Temperature: -10°C to 70°C
- Full Travel: SP & DP: 2.7mm; 3P: 5.0mm
- Contact Arrangement: SPDT, DPDT, 3PDT
- Actuation Force: Single pole momentary: 1700gf, alternate: 1000gf; Double pole momentary: 2500gf; Double pole alternate: 1600gf; 3 pole alternate: 3000gf
- Panel Thickness: Max 8mm
- Mounting Options: PCB or Panel Mount
- Terminals: Solder, PCB Pins
- Sealing: Epoxy hardware
- Thread Size: M12 x 0.75
- Full Travel for Different Functions: 2.7mm or 5.0mm
Buy the Reliable FS5700 Series Pushbutton Switch for Industrial Applications
Purchase the FS5700 Series pushbutton switch online today to get reliable, sealed, high-actuation-force momentary and alternate action switches. Designed for industrial and vandal-proof applications, these switches feature multiple contact configurations including SPDT, DPDT, and 3PDT, with solder and PCB options. Built to withstand temperatures from 10°C to 70°C, with a mechanical life of 30,000 cycles, they are ideal for demanding environments. Enjoy fast delivery and secure online ordering for your control, detector, or navigation needs.
Order your FS5700 Series pushbutton switch today and ensure your projects benefit from durable, high-force actuation in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH FS5700SPMT2B2M1QEH?
You can click on the BUY or RFQ button to purchase FS5700SPMT2B2M1QEH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part FS5700SPMT2B2M1QEH?
You can download the FS5700SPMT2B2M1QEH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of FS5700SPMT2B2M1QEH?
E-SWITCH
