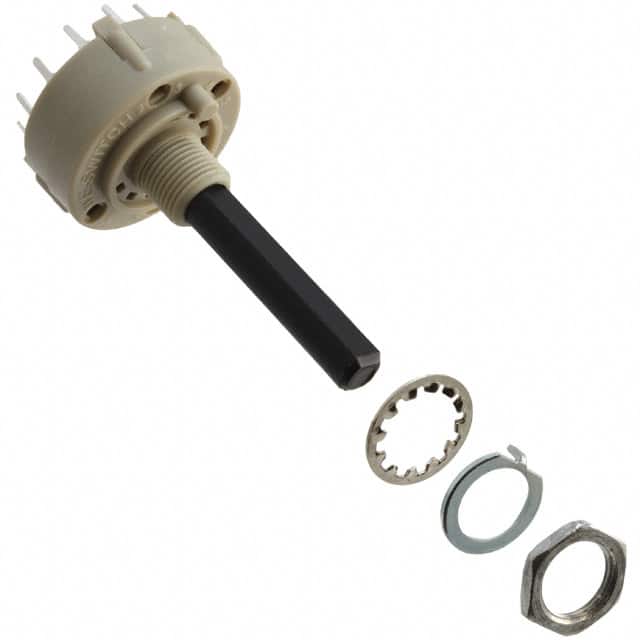

E-SWITCH KC43A30001NPS Rotary Switches
The KC Series Rotary Switches are reliable and durable switching components designed for control and automation applications. They feature smooth rotational operation and multiple switching positions to suit various circuit configurations. Made with materials like glass-filled nylon housing, zinc-plated hardware, and silver-plated copper contact surfaces, these switches offer excellent electrical performance. They support ratings of 360 mA at 125 VAC and 150 mA at 250 VAC, with a typical life expectancy of 10,000 cycles. Suitable for industrial controls, testing, instrumentation, and appliance hardware, they ensure precise switching in demanding environments.
E-SWITCH KC43A30001NPS Rotary Switches Specifications:
- Ratings: 360 mA at 125 VAC, 150 mA at 250 VAC
- Life Expectancy: 10,000 cycles typical
- Contact Resistance: 25mΩ initial @ 2-4 VDC, 100mA
- Dielectric Strength: 1,500 V rms at sea level
- Insulation Resistance: 100MQ min.
- Operating Force: 86 N/cm
- Housing, Base, Shaft Material: Glass filled nylon
- Contact Material: Silver plated copper alloy
- Housing Finish: Zinc plated hardware, nickel plated nuts
- Lockwasher: Steel, zinc plated
- Stop Ring: Brass, nickel plated
- Rated Voltages: 125 VAC, 250 VAC
- Number of Positions: 1 to 12
- Switch Types: Non-shorting, Shorting options available
- Mounting: Panel mounting with nut and lockwasher
- Applicable for: Industrial controls, test & instrumentation, appliances
Buy the GLe Series Rotary Switches: KC43A30001NPS
Discover the GLe Series Rotary Switches, engineered for durability and precision. These switches feature multiple positions, supporting ratings of 360 mA at 125 VAC and 150 mA at 250 VAC. Ideal for industrial controls, testing, and automation, they provide 10,000 cycles of reliable operation. Made with high-quality materials including glass-filled nylon housing and silver-plated contact surfaces, ensuring stable electrical contact and long life. Order online today to enhance your control systems with dependable switching technology.
Buy GLe Series KC43A30001NPS rotary switch now and experience unmatched reliability and performance for your industrial control needs.
Frequently Asked Questions
Where can I buy E-SWITCH KC43A30001NPS?
You can click on the BUY or RFQ button to purchase KC43A30001NPS from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part KC43A30001NPS?
You can download the KC43A30001NPS datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of KC43A30001NPS?
E-SWITCH
