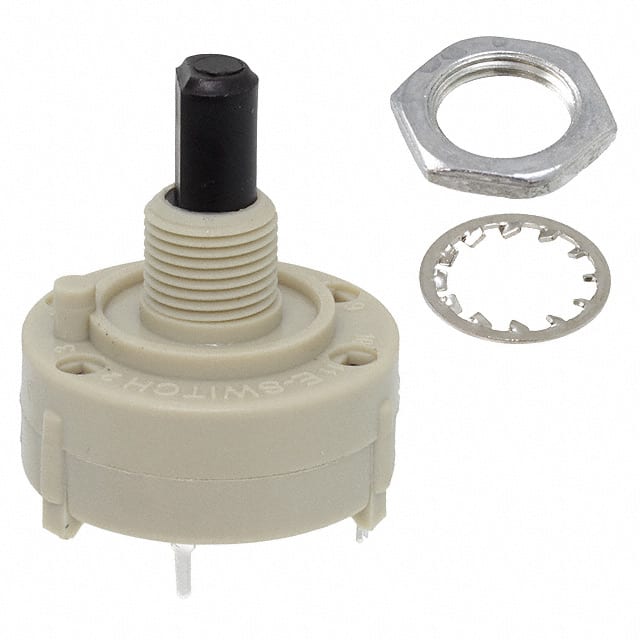

E-SWITCH KC58A9501NPS Rotary Switch
The KC Series Rotary Switches are robust and reliable electrical components designed for diverse control applications. They feature a versatile rotary actuation mechanism, allowing users to select from 12 positions with no stops or multiple stops options, suitable for industrial controls, test equipment, and appliance hardware. Made with a glass-filled nylon housing, these switches have silver-plated copper alloy contacts with gold flash options for improved conductivity and corrosion resistance. Rated at 360 mA at 125 VAC and 150 mA at 250 VAC, they offer a life expectancy of 10,000 cycles. Their sturdy construction and precise switching make them ideal for demanding environments.
E-SWITCH KC58A9501NPS Rotary Switch Specifications:
- Contact Type: Silver plated copper alloy with optional gold flash
- Number of Positions: 1 to 12 positions, with options for stop or no stop
- Electrical Ratings: 360 mA at 125 VAC, 150 mA at 250 VAC
- Life Expectancy: 10,000 cycles typical
- Contact Resistance: 25m initial @ 2-4 VDC, 100mA
- Dielectric Strength: 1,500 V rms at sea level
- Insulation Resistance: 100MQ minimum
- Operating Force: 86 N/cm
- Housing & Base Material: Glass filled nylon
- Actuator Options: Flat, Round, Slotted, Solder Lug
- Housing Finish: Nickel plated or zinc plated as per options
- Certifications: Subject to change, per industry standards
Buy the KC Series Rotary Switches: KC58A9501NPS
Purchase the high-quality rotary switch online today for your industrial, test, or appliance control needs. Designed with durable silver-plated contacts and available in multiple positions, this switch ensures smooth operation and long-lasting reliability. Rated for up to 360 mA at 125 VAC, it features a robust glass-filled nylon housing with options for various actuation types and stop configurations. Whether for new installations or replacements, order now to benefit from fast shipping, competitive pricing, and trusted quality tailored for demanding environments.
Get KC Series Rotary Switches today—built for precision, durability, and reliable operation in industrial and control settings.
Frequently Asked Questions
Where can I buy E-SWITCH KC58A9501NPS?
You can click on the BUY or RFQ button to purchase KC58A9501NPS from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part KC58A9501NPS?
You can download the KC58A9501NPS datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of KC58A9501NPS?
E-SWITCH
