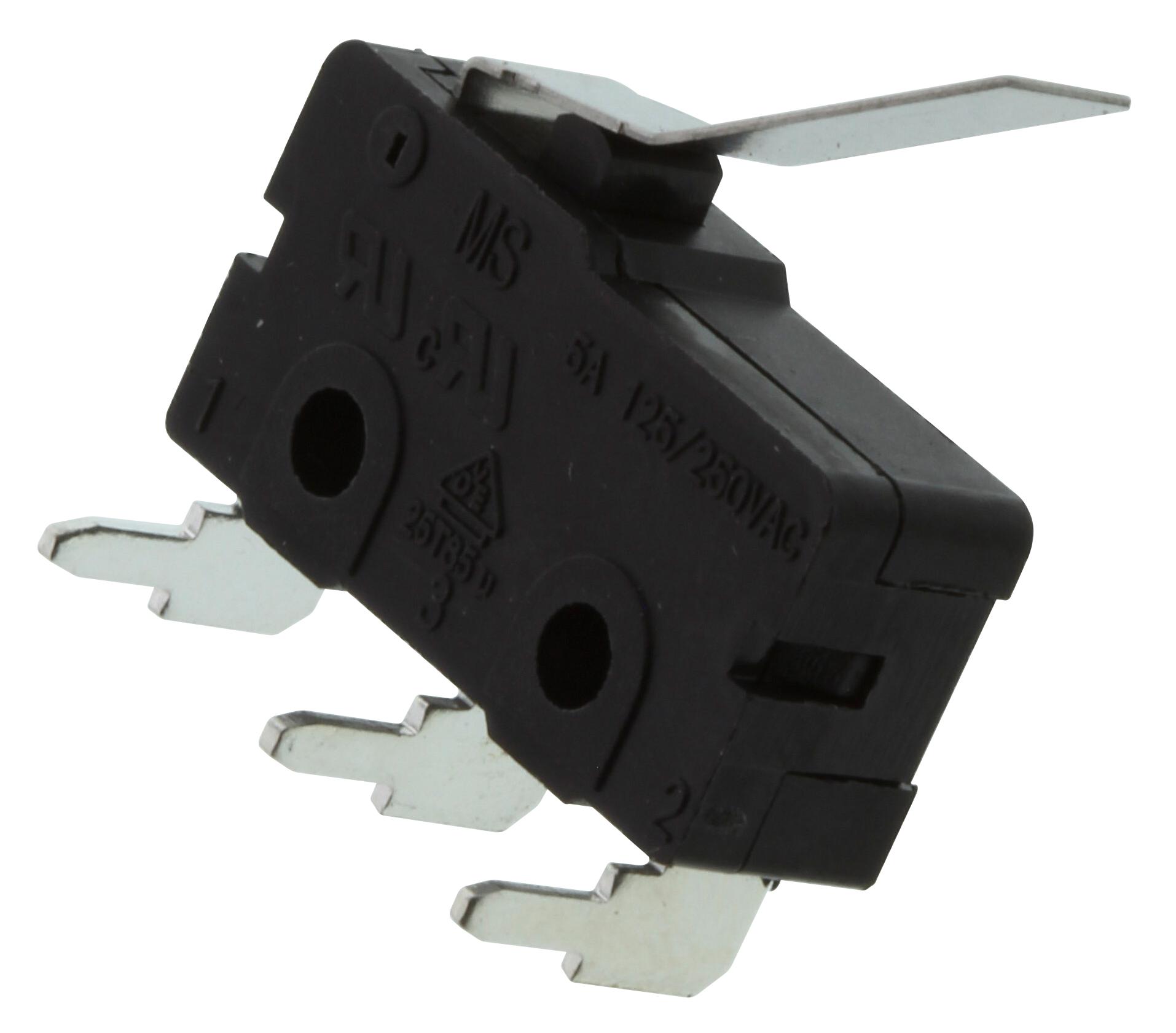

E-SWITCH MS0850506F020V2A Miniature Snap Action Switch
Miniature snap action switches are reliable industrial components designed for various automation and control applications. Featuring gold contacts with a maximum rating of 0.4VA at 20 VDC or VAC, and 5 Amps at 125/250 VAC, these switches offer a mechanical life expectancy of 1,000,000 cycles and an insulation resistance of at least 100 MO. Suitable for appliance, vending, gaming, industrial controls, and power tools, they provide durability and versatile actuator options including PCB pins, right/left angles, and quick connect terminals, ensuring dependable performance in demanding environments.
E-SWITCH MS0850506F020V2A Miniature Snap Action Switch Specifications:
- Contact Rating: Gold .4VA max. @ 20 VDC or VAC Max.
- Current Rating: 5 Amps @ 125/250 VAC-UL, CUL
- Life Expectancy: 50,000 cycles minimum
- Mechanical Life: 1,000,000 cycles typical
- Insulation Resistance: 100 MO min.
- Dielectric Strength: 1,000 VAC for 60 seconds
- Operating Force: See Chart
- Actuator Options: PCB Pin, Right Angle, Left Angle, Quick Connect
- Voltage Rating: 125/250 VAC
- Contact Material: Gold-plated contacts
- Mode: SPSTNO (Single Pole Single Throw Normally Open)
- Features: Wide variety of actuator, operating force & termination options
Buy the IndustrialSwitches 0850506F020V2A – Reliable Snap Action Switches for Industrial Applications
Purchase the miniature snap action switch MS0850506F020V2A online today and enhance your automation and control systems with a highly reliable, durable switch. Designed for industrial control, vending, gaming, and power tools, this switch features gold contacts capable of handling 5A at 125/250VAC, with a life expectancy of 1,000,000 cycles. Its versatile actuator options, including PCB pins and quick connect terminals, ensure flexible installation and dependable operation in demanding environments. Buy now to ensure your projects stay productive and safe.
Order your IndustrialSwitches Series MS0850506F020V2A today and ensure your automation projects benefit from dependable, high-quality components.
Frequently Asked Questions
Where can I buy E-SWITCH MS0850506F020V2A?
You can click on the BUY or RFQ button to purchase MS0850506F020V2A from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part MS0850506F020V2A?
You can download the MS0850506F020V2A datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of MS0850506F020V2A?
E-SWITCH
