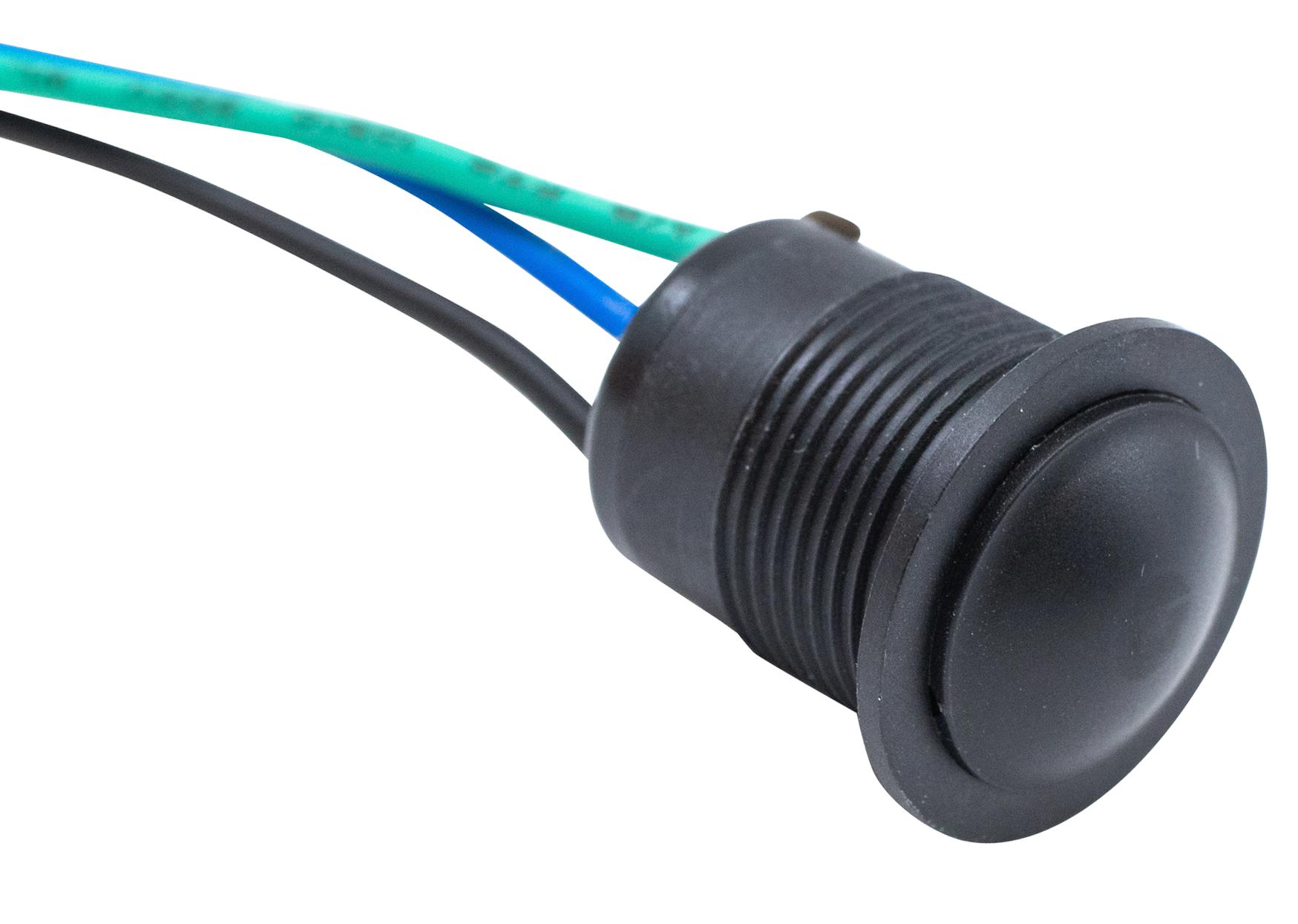

E-SWITCH PMV6DW1BBLK Anti-Vandal Switch
The PMV6 Series Anti-Vandal Switch is a robust, IP67-rated toggle switch with a 16mm panel cutout, featuring a 2A, 24VDC electrical rating and 10,000 cycle lifespan. Its durable design includes a tactile response, various cap color options, and pre-stripped, tinned 20 AWG wire leads for reliable installation. Suitable for industrial and commercial applications, it withstands temperatures from -20°C to 65°C and provides multiple contact configurations, including SPST On-(On) and Off-(On). Its compact size and strong construction make it an ideal choice for vandal-resistant control panels.
E-SWITCH PMV6DW1BBLK Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ Max.@1A/12VDC
- Insulation Resistance: 100 MΩ Min. @ 500VDC
- Dielectric Strength: 500Vrms
- Operating Temperature: -20°C to 65°C
- Travel: 1.5mm
- Moisture Protection: IP67
- Contact Arrangement: SPST On-(On), Off-(On), On-(Off)
- Actuation Force: 7N ±2N
- Panel Thickness: 1-7mm
- Mounting Nut Torque: 0.5-1Nm Max.
- Panel Cutout: 16mm
- Wire Leads: 20AWG, pre-stripped, tinned, 500mm length
- Housing Colors: Black, Red, Green, White, Blue, Yellow
- Function Options: Multiple caps available
Buy the PMV6 Series Anti-Vandal Switch – Reliable Industrial Toggle Switch for Industrial Applications
Purchase the PMV6 Series Anti-Vandal Switch online today and enjoy a durable, IP67-rated toggle switch with a 16mm panel cutout, 2A current capacity, and a lifespan of 10,000 cycles. Its rugged design includes multiple cap color options, pre-stripped tinned wire leads, and excellent moisture resistance, making it ideal for demanding industrial and commercial control panels. Secure quick delivery and expert support for your installation needs with this reliable, vandal-resistant switch that withstands harsh environments and provides dependable operation.
Get PMV6 series anti-vandal switches today—built for durability and reliable performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PMV6DW1BBLK?
You can click on the BUY or RFQ button to purchase PMV6DW1BBLK from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PMV6DW1BBLK?
You can download the PMV6DW1BBLK datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PMV6DW1BBLK?
E-SWITCH
